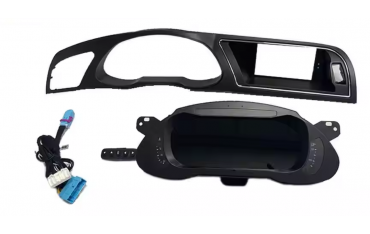

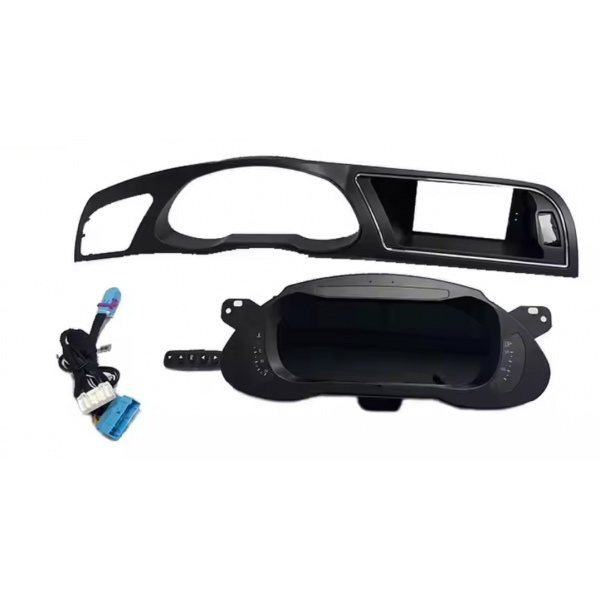

Digital dashboard Audi A4 / RS4 2008 - 2018 12.5″ Linux with Miracast TR4388

Digital dashboard Audi A4 / RS4 B8 2008 - 2016 12.5″ Linux with Miracast TR4388

Write a review

€739.00 tax incl.

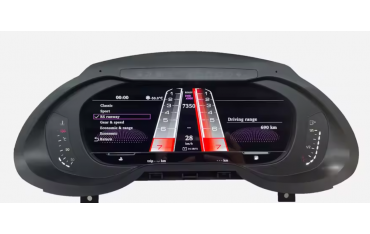

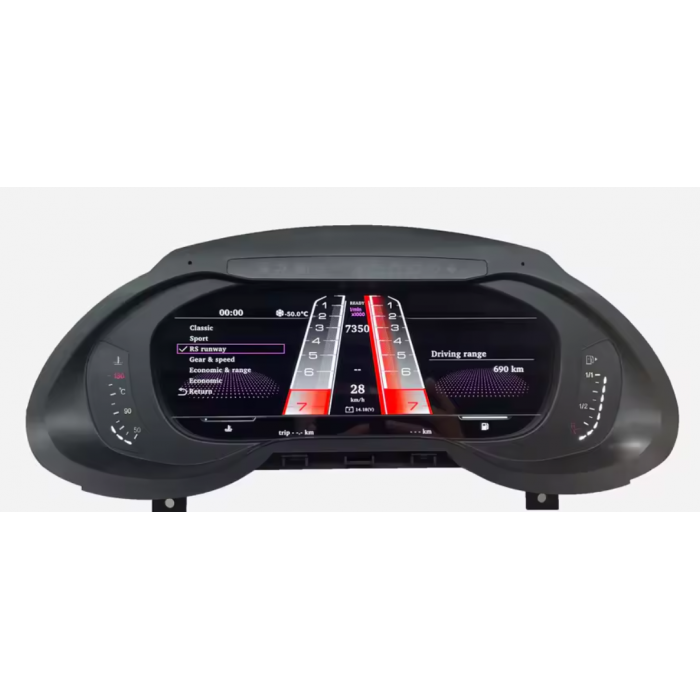

Upgrade the original analog cluster of the Audi A4 / RS4 B8 2008 - 2016 with a digital dashboard.

Displays all original parameters including faults and maintenance intervals.
Linux operating system, boots in 2 seconds.
Plays navigation maps and media from external devices via Miracast. Mirrors your phone screen on the dashboard.

Available

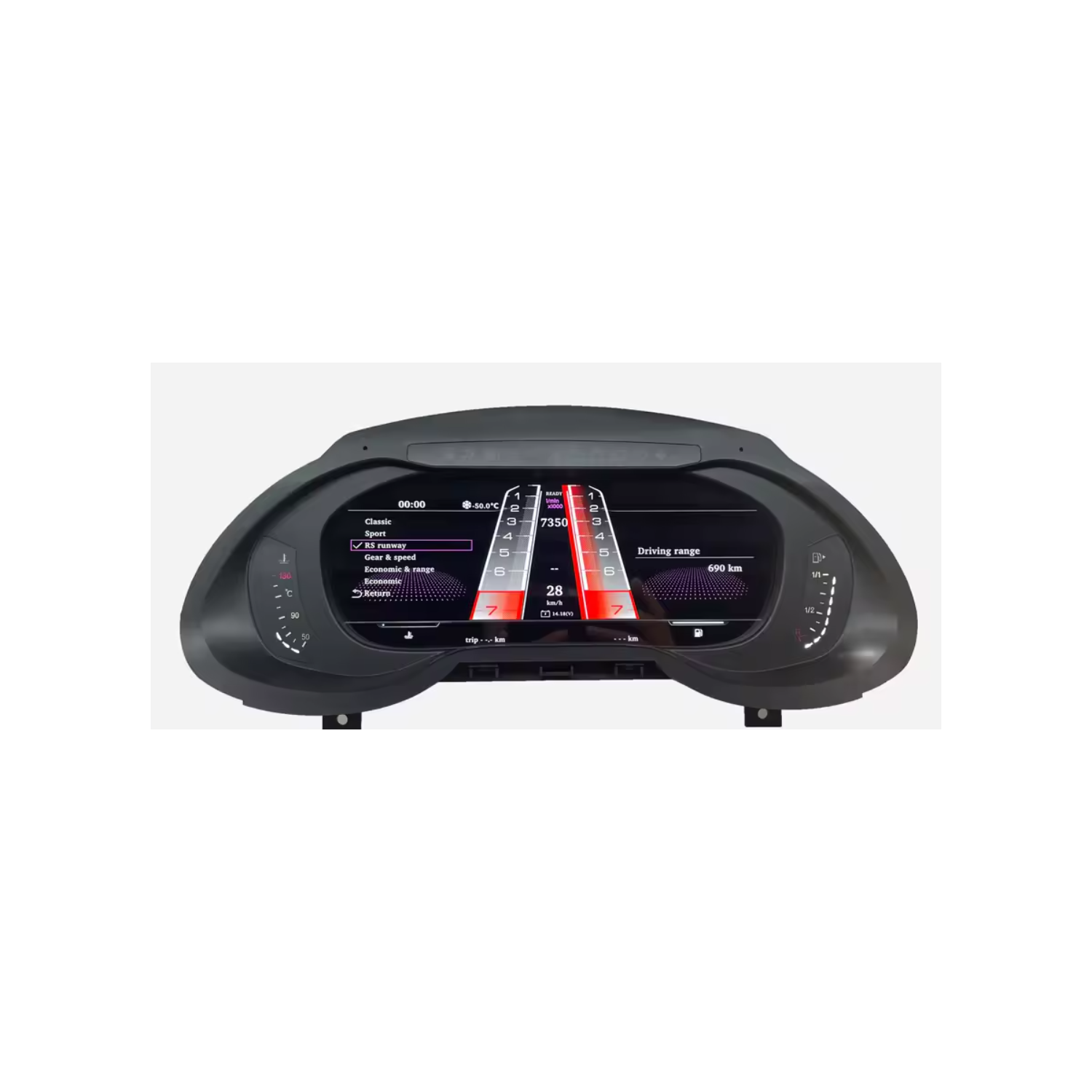

Digital Dashboard for Audi A4 / RS4 B8 (2008–2016)

Transform your Audi A4 or RS4 with a high-resolution digital dashboard, compatible with models from 2008 to 2016. Upgrade the original analog cluster with an advanced digital screen that delivers top performance and multiple customization options.

Digital Dashboard Compatibility

Compatible models: Audi A4 (2008–2016), Audi RS4 (2013–2015)
Installation: Plug & Play with original connectors, no coding required.
Compatibility: Works with original steering wheel controls.

Key Functions and Benefits

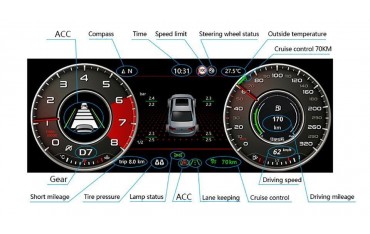

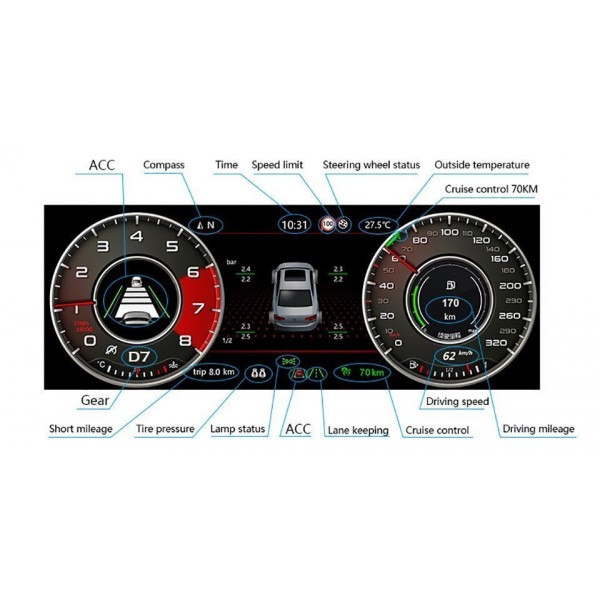

Displays all original parameters, including faults and maintenance intervals.
Fast boot in just 2 seconds.
Miracast compatible: Mirror your phone screen and play maps and media from external devices.

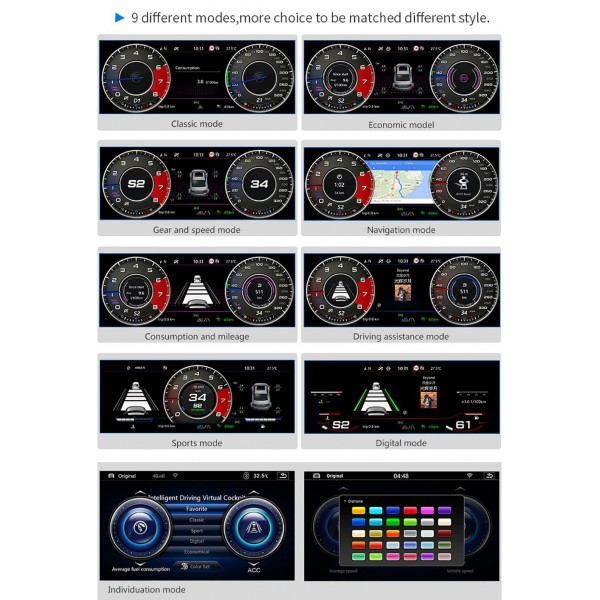

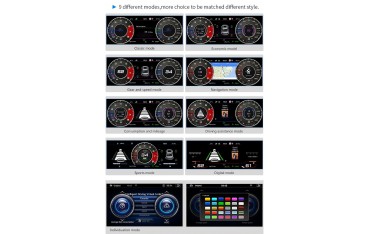

9 different customization styles to suit your preferences.

Technical Specifications of the Digital Dashboard

Screen type: AID Series
Screen size: 12.5 inches
Resolution: 1920x720p, 320dpi
Brightness: 1000 cd/m²
Processor: Quad-core A53 at 1.2 GHz
Operating system: Linux 4.9
RAM: 4 GB DDR3L
Storage: 8 GB eMMC
USB: USB 2.0
Connectivity: Built-in CarPlay, Android Auto and HiCar
HDMI: HDMI input and multimedia-system output to the instrument cluster
Updates: OTA
Power supply: 9–18 V; operating current 0.6–2.5 A and standby current below 3 mA
Operating temperature: −20 °C to 75 °C
Storage temperature: −40 °C to 85 °C
Functions: remote data acquisition and retention of the vehicle’s original functions
Pointer color: 18 customizable colors
Online maps support: Yes
Multimedia support: Video and audio

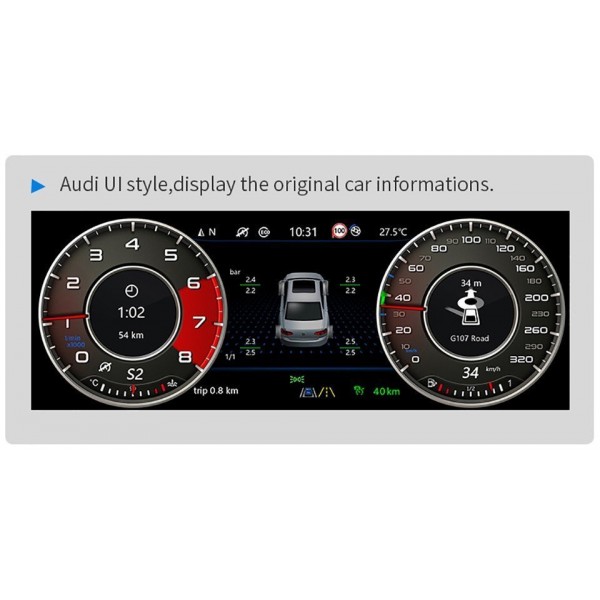

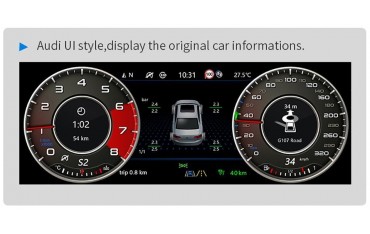

Interface: Similar to original Audi design
Easy installation: Uses the same connection as the original analog cluster, no activation required.

Why Choose Our Digital Dashboard for Audi A4 / RS4 B8?

This digital dashboard offers a modern and efficient solution to enhance your Audi A4 or RS4 driving experience. With multiple customization options, full compatibility with original controls, and easy installation, it's perfect for drivers looking to improve both performance and aesthetics.

Brand Tradetec

Reference TR4388
