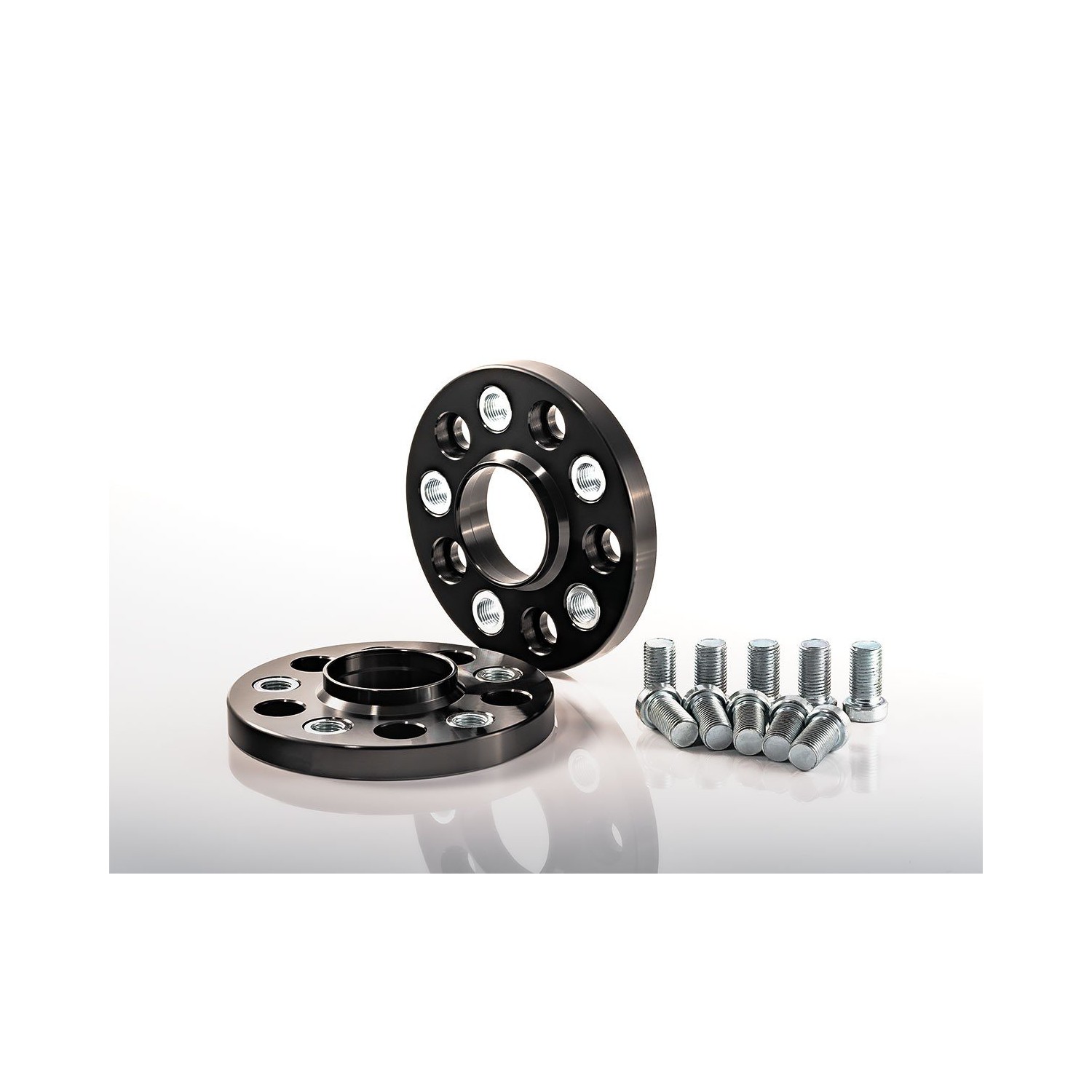

Track widening spacer system B 20 mm per wheel VW Golf 2 19E

Track widening spacer system B + 20 mm per wheel VW Golf 2 (19E)

€130.99 tax incl.
  • for VW Golf 2
  • Color: black anodized
  • for year of construction: 1983 to 1989
  • Width / axis 40 mm
  • Track widening system B + with center.
  • Pitch circle 4/100 hub hole 57.1 M12x1.5
  • Fixing screws included
  • Best quality
Available
Quantity

Have got doubts about compatibility, installation...? Ask us:

The wheel spacers are attached to the original vehicle mount using longer wheel bolts. The assembly is very easy. Simply put the wheel down, put the track widening on it and then mount the rim on the wheel hub using longer wheel bolts. The wheel spacers are produced on the most modern CNC-controlled saws, turning and milling centers. Please order longer wheel bolts at the same time! FK offers 4 different types of wheel spacers

System A without centering , this track widening is a kind of disk on which the hole pattern of your vehicle is integrated. The hub diameter is also taken into account. With this type of vehicle, it is important that the series hub has a longer centering than the track widening so that the rim is also centered over the series scar. If the serial scar does not center the rim, the rim must be centered using the wheel bolts / wheel bolts. This means that the screws in the unloaded vehicle are tightened to the nominal torque! Fixing screws not included in delivery.

System A with centering , this track widening has a centering over which the rims are then centered. Therefore a rotation is also granted at high speeds. Before you install or order a wheel spacer without centering, always prefer a wheel spacer with centering if technically possible. However, note the standard height of the hub. Fixing screws not included in delivery.

System B with centering , in this system the wheel spacer is attached directly to the wheel hub with the short head screws supplied. Then the rim is attached to the wheel spacer using the original rim bolts. It is important that you are fastened a maximum of 5-7 screw turns in the wheel spacer! This has to be checked before mounting to the rims with the wheel spacers.

System B + with centering , in this system the wheel spacer is attached directly to the wheel hub with the short head screws supplied. Then the rim is attached to the wheel spacer using the original rim bolts. The screw fastening is guaranteed 100% by pressed steel beeches! It is important that you are fastened a maximum of 5-7 screw turns in the wheel spacer! This has to be checked before mounting to the rims with the wheel spacers.

Further execution details:

  • Material consisting of high-strength aluminum which is also used in aircraft construction.

  • Race tracks and strength tested and proven by TÜV.

  • Vehicle-specific wheel spacers and no universal wheel spacers

  • Details of the width always per axle, i.e. the pulley thickness multiplied by two

  • easy assembly within minutes great effect

  • if the track widening is with approval, the TÜV certificate is supplied

  • Quantity always two slices per set

  • front and rear axles of different widths can be mounted

  • Plan parallelism difference less than 0.1mm

Scope of delivery:

  • 1 set of wheel spacers (left + right for two rims)

FK00920BZP-35

Data sheet

Marca coche
VW
Modelo coche
Golf II (19E, 1G1) | Jetta II (19E, 1G2, 165)
Marca
FK-Automotive
