Compatible models and years
- 1 Series F20 (2014-2019)
- 2 Series F22 Coupé (2014-2021)
- 2 Series F23 Cabrio (2015-2021)
- 2 Series Active Tourer F45 (2014-2021)
- 2 Series Gran Tourer F46 (2015-2021)

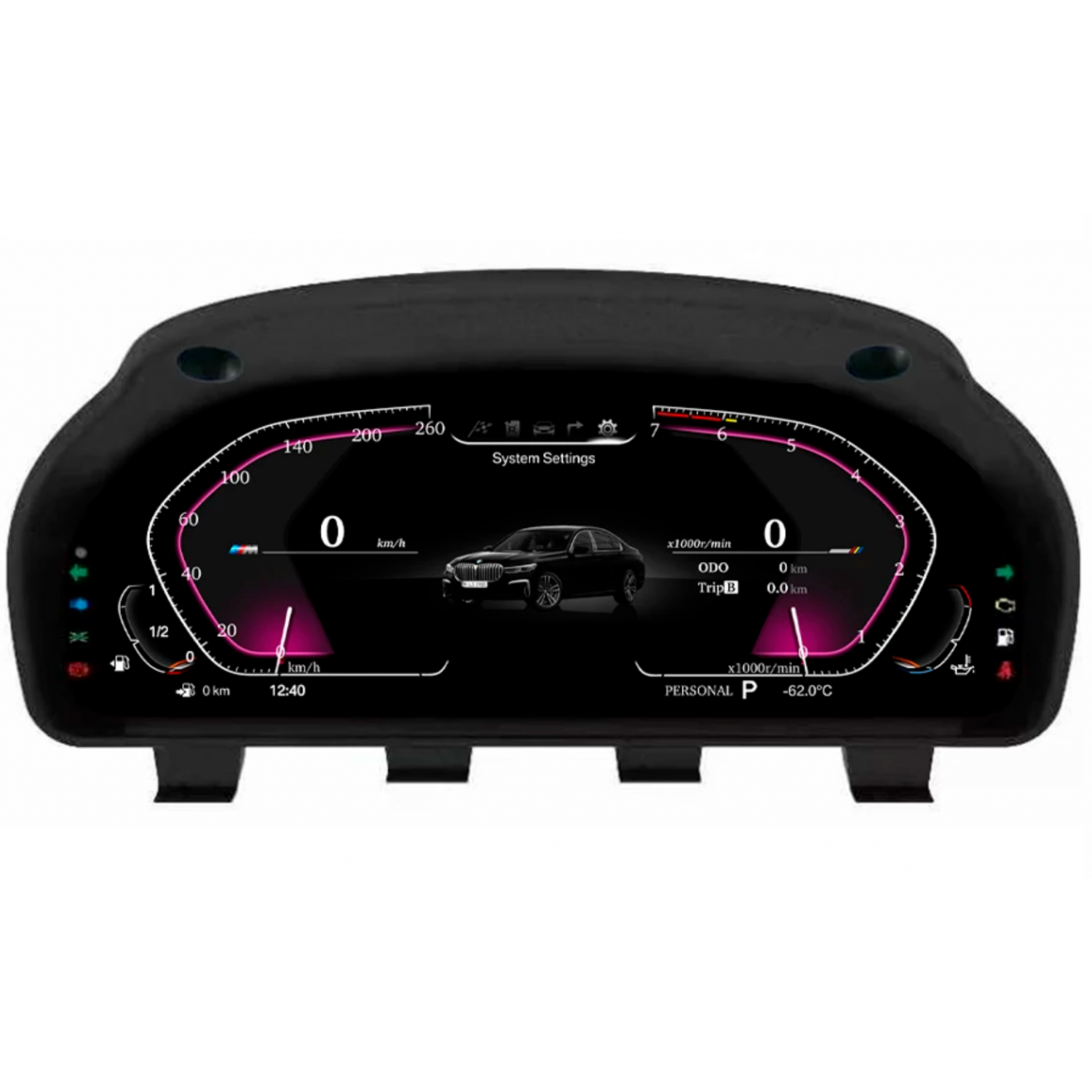

Digital cockpit for BMW 1 Series F20 / BMW 2 Series (years vary by model)
Compatible with:
BMW 1 Series F20 / BMW 2 Series (years vary by model) NBT / EVO
Update the original analog panel for a digital control panel.
Shows all original parameters including breakdowns and maintenance intervals.
Linux operating system, boots in 2 seconds.
Play navigation maps and images from external devices with Miracast. Duplicate the phone screen on the dashboard.
9 different customization styles
Details:
Screen Type: AID Series
Screen size 12.5 inches
Viewable area 287*93mm
Resolution: 1920*720p, 320dpi
Brightness: 1000cd/m2
Chipset: T507 plus (CPU4 core_primary frequency 1.8GHZ)
Navigation: A map mode
Pointer color: 18 colors
Support online map
Support video playback
Vision mask with 9 customizable modes
BMW-like interface
Does not need activation
Uses the same connection as the original analog box
Technical specifications confirmed by the manufacturer
- Processor: Quad-core A53 at 1.2 GHz
- Operating system: Linux 4.9
- RAM: 4 GB DDR3L
- Storage: 8 GB eMMC
- USB: USB 2.0
- Connectivity: Built-in CarPlay, Android Auto and HiCar
- HDMI: HDMI input and multimedia-system output to the instrument cluster
- Updates: OTA
- Power supply: 9–18 V; operating current 0.6–2.5 A and standby current below 3 mA
- Operating temperature: −20 °C to 75 °C
- Storage temperature: −40 °C to 85 °C
- Functions: remote data acquisition and retention of the vehicle’s original functions
