Android 15 module for original screen Mercedes Benz system NTG6 TR3733

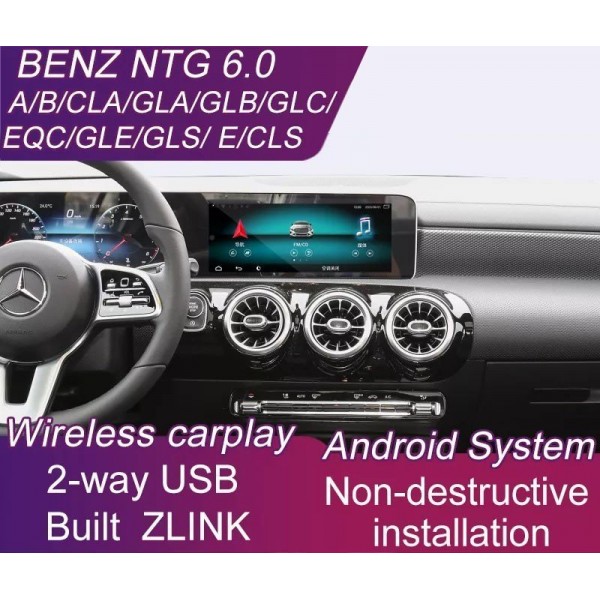

Module add Android 15 to original display for Mercedes Benz A B C Class CLA G GLA GLB GLC GLE GLS E CLS S EQC NTG6 system

Compatible with the following vehicles:
- Mercedes Benz A-Class from 2019, original system NTG6 original touch screen of 10.25 inches and resolution of 1920×720 pixels
- Mercedes Benz B-Class from year 2019, original system NTG6 original touch screen of 10.25 inches and resolution of 1920×720 pixels
- Mercedes Benz C-Class: W205 (2019-2021), with the original horizontal screen; W206 (from 2021), with the original vertical screen. Compatible with both versions, using the correct connection and adjustment for the factory system.
- Mercedes Benz CLA Class from year 2019, original system NTG6 original touch screen of 10.25 inches and resolution of 1920×720 pixels
- Mercedes Benz G-Class from 2019, with the original horizontal screen. Compatible with both touchscreen and non-touchscreen versions, using the correct connection and adjustment for the factory system.
- Mercedes Benz GLA: X156 (2019-2020), with the original non-touchscreen display; H247 (from 2020), with the original touchscreen. Compatible with both versions, using the correct connection and adjustment for the factory system.
- Mercedes Benz GLB-Class from 2019, original NTG6 system 10.25-inch original touch screen and 1920×720 pixel resolution
- Mercedes Benz GLC: X253 (2020-2022), only with the original horizontal screen and compatible system. Not compatible with the GLC X254 with a vertical screen. Use the correct connection and adjustment for the factory system.
- Mercedes Benz GLE-Class from year 2019, original system NTG6 original touch screen of 12.3 inches and resolution of 1920×720 pixels
- Mercedes Benz GLS-Class from year 2019, original system NTG6 original touch screen of 12.3 inches and resolution of 1920×720 pixels
- Mercedes Benz E-Class from year 2019, original system NTG6 original touch screen of 12.3 inches and resolution of 1920×720 pixels
- Mercedes Benz CLS-Class from 2019, original NTG6 system 12.3-inch original touch screen and 1920×720 pixel resolution
- Mercedes Benz EQC Class from year 2020, original system NTG6 original touch screen of 10.25 inches and resolution of 1920×720 pixels
- Mercedes Benz S-Class: W222 (2019-2020), with the original horizontal screen; W223 (from 2020), with the original vertical screen. Compatible with both versions, using the correct connection and adjustment for the factory system.

Operating principle:
Connect the LVDS cable from the original car CD drive to the Android module with the LVDS adapter cable supplied in the kit. Insert the LVDS cable of the Android module into the LVDS connector of the CD drive that we just disconnected. (Android module "output" is connected to the original car CD)

Operation method:
This module allows you to add an independent Android system to the original Mercedes NTG6 system. Both systems work simultaneously and you can switch between them quickly. NO original car function is lost.
This module allows viewing of videos, it has video input, compatible with most applications such as YouTube, Google Maps, Waze, TomTom, Zlink and countless applications available in PlayStore to download.

1. It has a Wi-Fi connection (you can access the Internet by sharing a connection with a smartphone) as well as 4G (SIM card reader) and Bluetooth (with hands-free function)

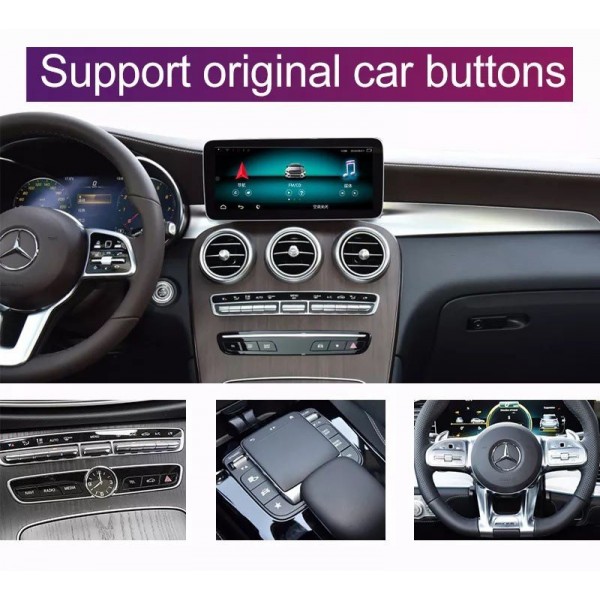

2. It is controlled from the original touch screen
3. Connect to audio via original bluetooth

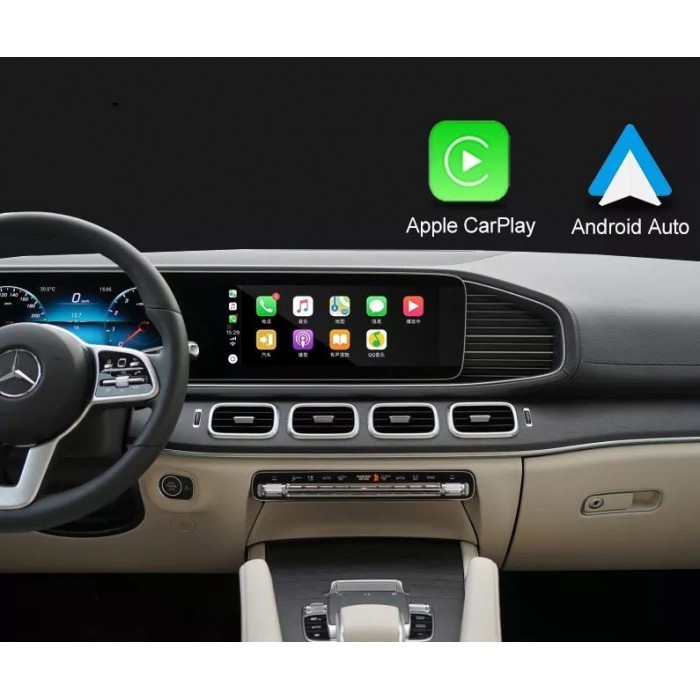

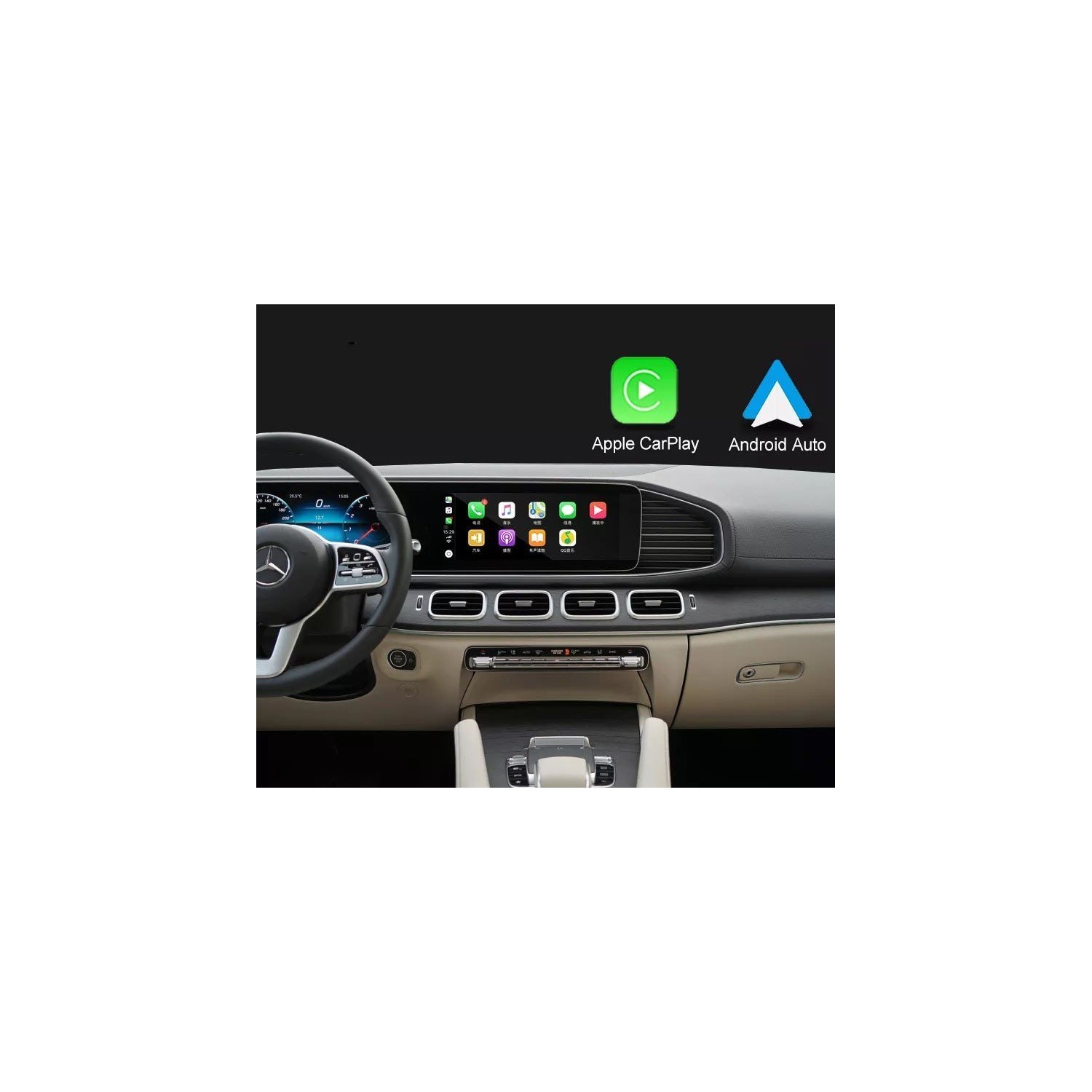

4. Includes WIRELESS CarPlay and WIRELESS Android Auto (also compatible via USB cable)

Developing:
1, Android Multimedia Video Interface First Company (Android 15 system for original car screen upgrade)
2, Support original bluetooth and android module bluetooth
3, USB connections, 2 ports
4, Work with original car touch screen
5, MicroSD card slot

Main features:
1. Android 15 (stable) OS with MTK 8core, 4xa73 2.0GHz + 4xa53 2.0 CPU 2.6G DDR
2. DDR3 8GB RAM, 64GB ROM / 8GB RAM, 128GB ROM
3. 2 USB ports, 1 MicroSD port (Support SD Max 128GB, Support USB Max 128GB)
4. Built-in high sensitivity GPS receiver
5. Built-in WiFi and 4G SIM card reader for Internet access
6. Support most video formats like 1080p H264 MP4 Avi RMVB FLV MKV
7. Compatible with most audio formats such as MP3 WMA FLAC ape AAC
8. Support phonelink function to mirror phone screen to car screen with Airplay (iPhone), Miracast (Android)
9. Support DVR (Driving Recording Camera) function with USB 2.0 and AV/CVB ports
10.Built-in RCA video input for rear parking camera
11. Compatible with or without original optical fiber
12. Compatible with or without original navigation
13. Built-in Bluetooth and compatible with original Bluetooth
14. Support original rear camera and parking sensors, show the same trajectory or radar as original
15.GPS sound from left front speaker when using original radio
16. Support AUX connection automatically
17. The installation is plug&play, keep the original screen of the car, support the original touch screen to control Android and the original interface
18. Android system can be connected to the original screen to continue to use Carplay, Yilian, etc...
19. The Android system is controlled through the touch panel, you do not need to modify anything from the original in the car and the original system is still operational with ALL the functions of the series
20. Support dual system: Mercedes original and Android with Playstore. Change of systems through very simple and agile pressing.

Characteristic:
1. System: Android 15.0
2. Memory: 8GB RAM + 64GB ROM / 8GB RAM + 128GB ROM
3. Support 1920x720 / 1280x720 or other resolution
4. Support most mainstream video, image and music formats
5.USB/SD/WIFI/4G LTE
6. Support external Carplay / Carlife / Android Auto / ZLINK
7. Compatible with original touch screen
8. Compatible with original reversing cameras front or rear trajectory. You can install non-original rear and/or front camera
9. Support original car reversing trajectory, parking sensors, 360º cameras, etc...
10. Support original car camera or can install non-original cameras
11. Support reverse camera image
12. Support wifi, bluetooth and 4G LTE connections (SIM card reader)
13. Support 4G network, you need to insert a SIM card
14. Supports audio, video, etc...
15. More than 40 languages ​​available, including Spanish, English, Russian, French, German, Italian, Arabic, Portuguese, Turkish, Thai, etc.
16. Includes a mini speaker, it is only for Android interface sound when used simultaneously with the original equipment sounding.

Package content:

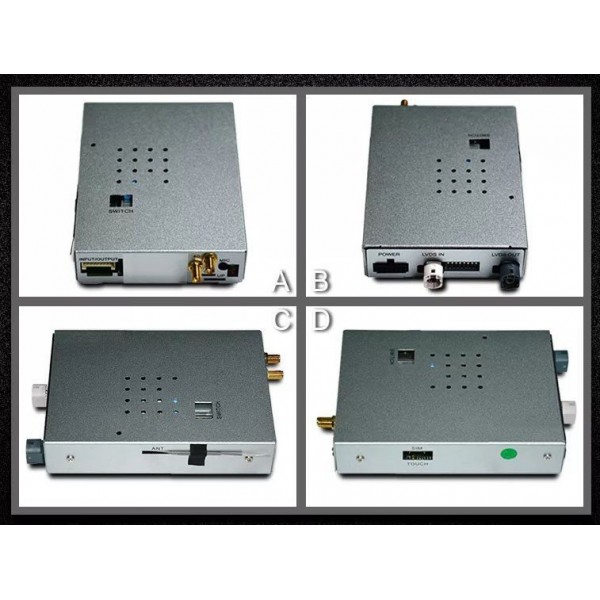

1 Android video interface module
1 power cord
1 indoor 4G SIM antenna
1 external microphone
1 mini speaker
1 GPS cable.
1 USB extension cable with 2 USB ports
