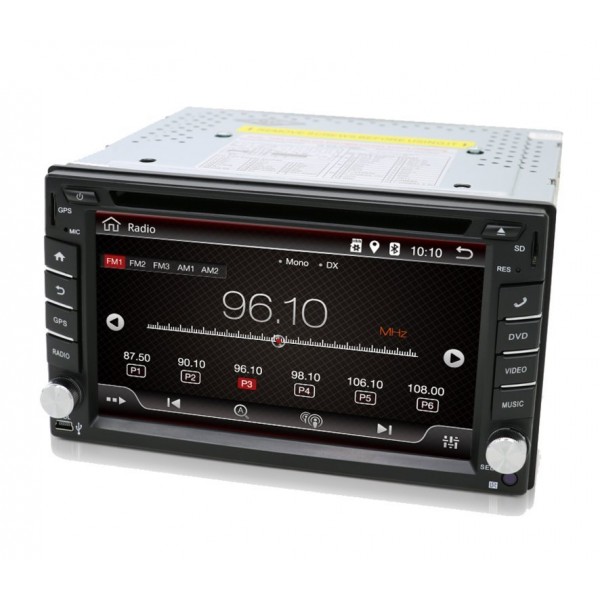

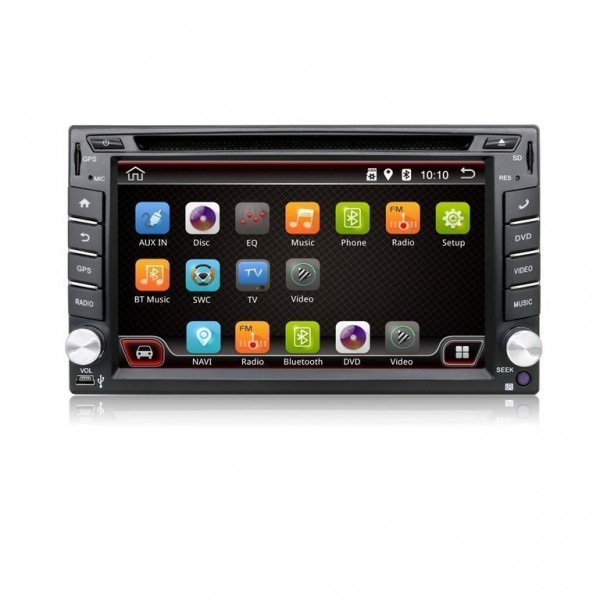

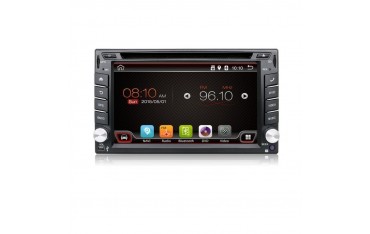

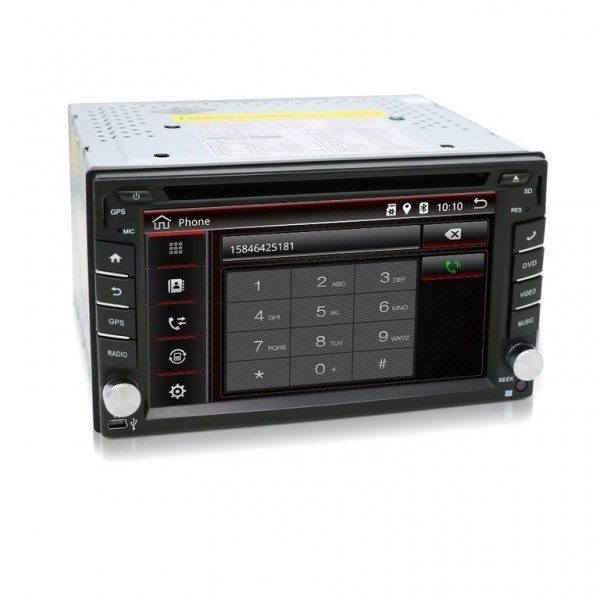

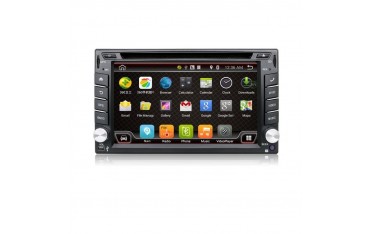

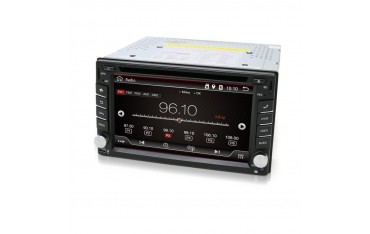

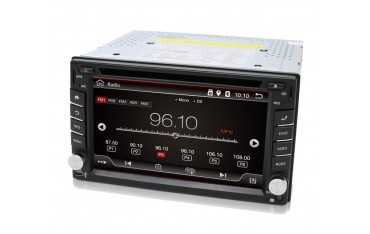

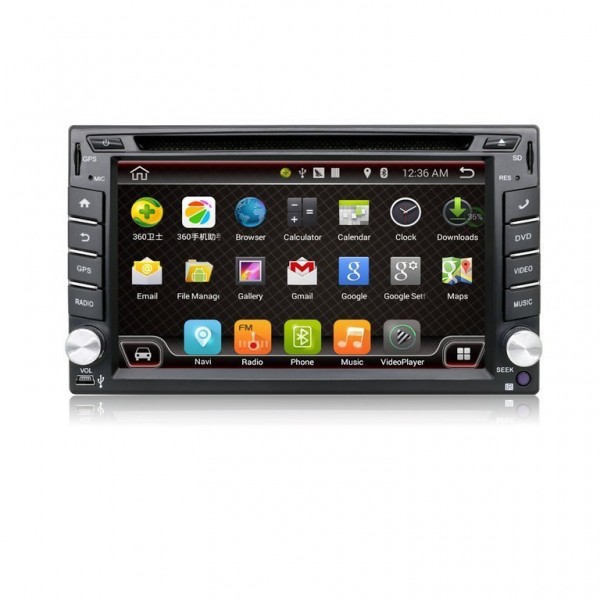

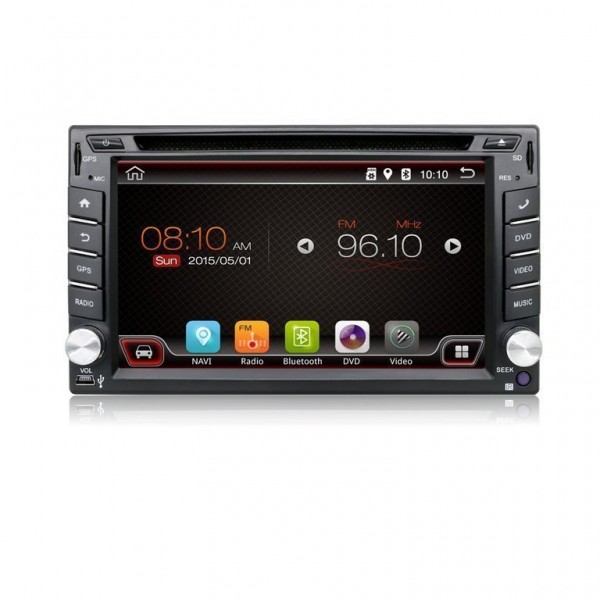

Android Radio DVD GPS multi touch screen with 4G LTE REF: TR2991

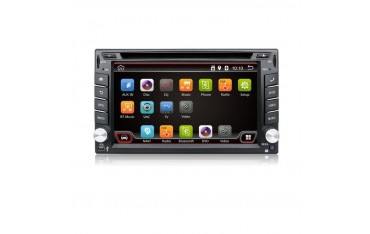

2 DIN central screen GPS Android with 4G LTE SIM reader

Main features:

Android 8.1 / 10 system

Processor: Quad Core T3 Cortex A7 or Cortex A9 Octa Core T5

RAM: 2Gb DDR3

Mirror Link function to view and listen to your smartphone wirelessly on the display unit (Android and IOS)

Internal Memory: 16GB or 32GB ROM iNAND (Quad core includes 16 GB ROM and Octa core includes 32GB ROM)

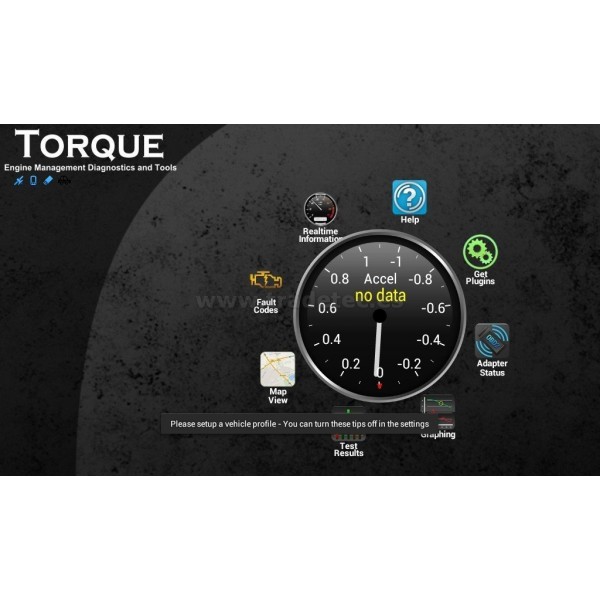

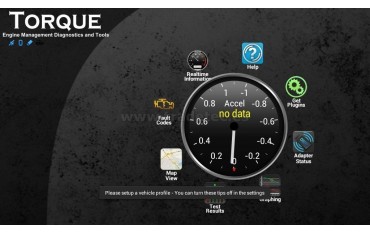

OBD2 bluetooth

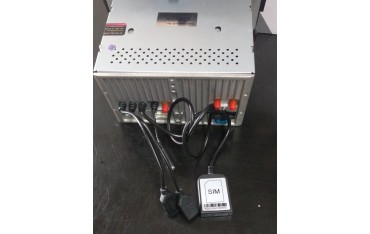

4G LTE connection (With SIM card reader) / WIFI for Internet browsing (Included)

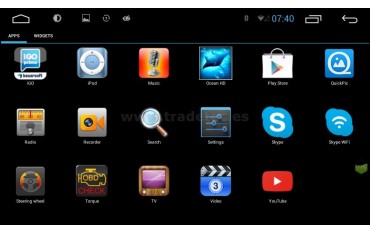

Compatible with thousands of programs available on Android Market

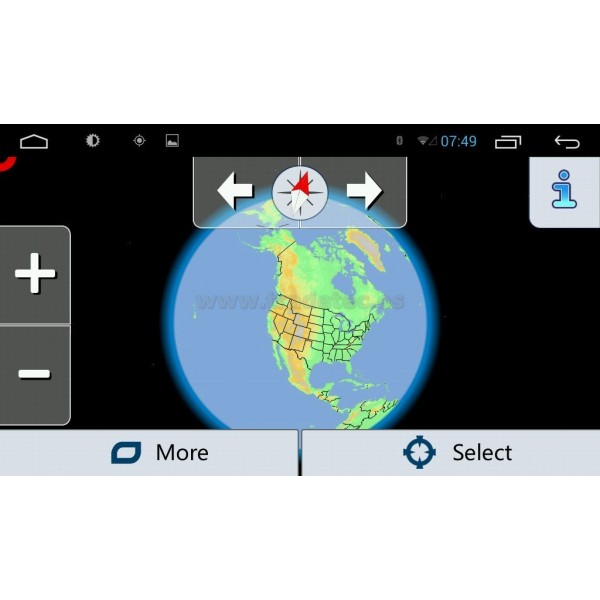

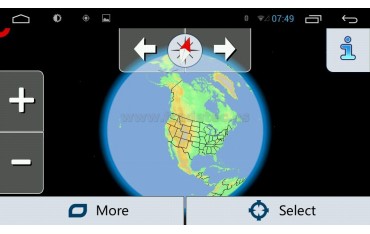

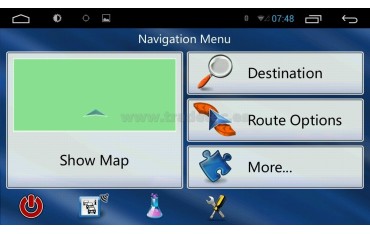

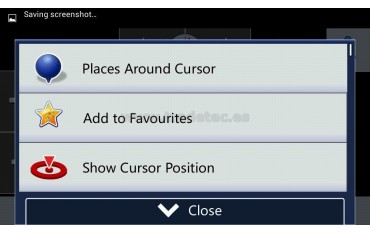

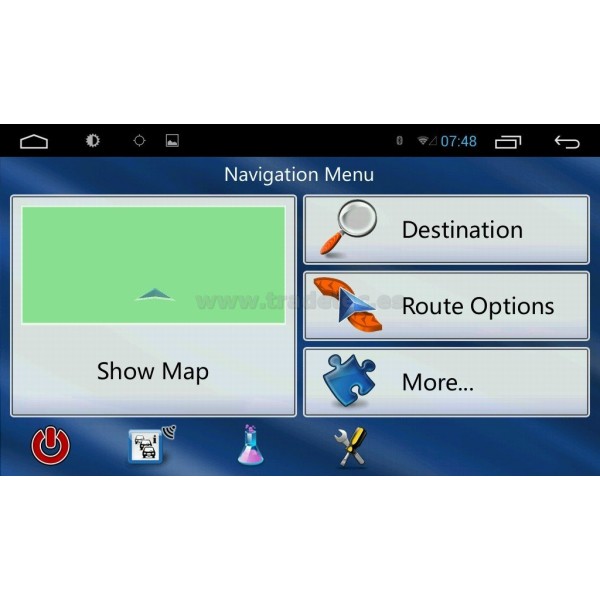

GPS navigation with 3D maps

Compatible 720P and 1080P

Bluetooth is compatible with all mobile phone brands, calendar feature, music playback, supports name search A-Z ...

GPU integrated with speeding its powerful hardware, helps to improve 2D / 3D GPS navigation, supports OpenGL 2.0 and OpenVG 1.1, decodes 1080P

Touch screen digital direct drive RGB888, a definition and a clearer screen than other models.

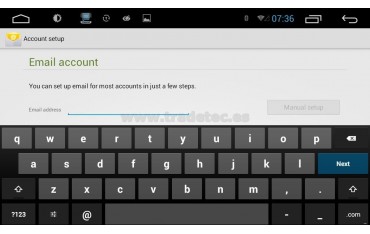

Multi touch screen control Touch

Support multi-resolution UXGA @ 60HZ1600 * 1200 maximum, it supports larger, even above 10.1 inch car DVD screens. Clearer images that resolution 800 * 480.

It supports video: .wmv (VC1 codec), AVI (H.264, MPEG4, MJPEG, XviD, WMV), MP4 (H.263, H.264, MPEG4), MPG (MPEG-2 codec), ... m4v (H.264, MPEG4)


Main system:

Main CPU. Quad Core T3 Cortex A7 or Cortex A9 Octa Core T5

2Gb DDR3 RAM

16GB or 32GB Flash Memory Type INAND

Decode Video 1080P

Android 8.1 / 10 operating system

Operating temperature -20 ° C to +70 ° C

Storage temperature -30 ° C to +80 ° C

Consumption 500 mA@4.2V

Input voltage 11.5 ~ 15.5 V

Off consumption <15 mA

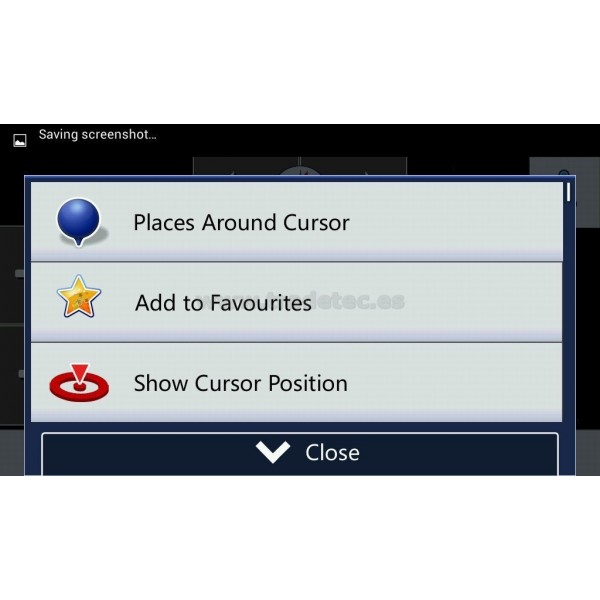

GPS:

Map can be stored in memory or SD card

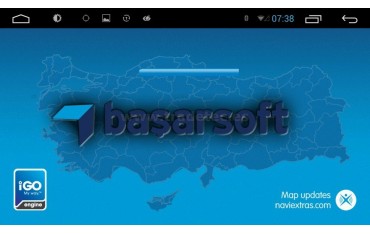

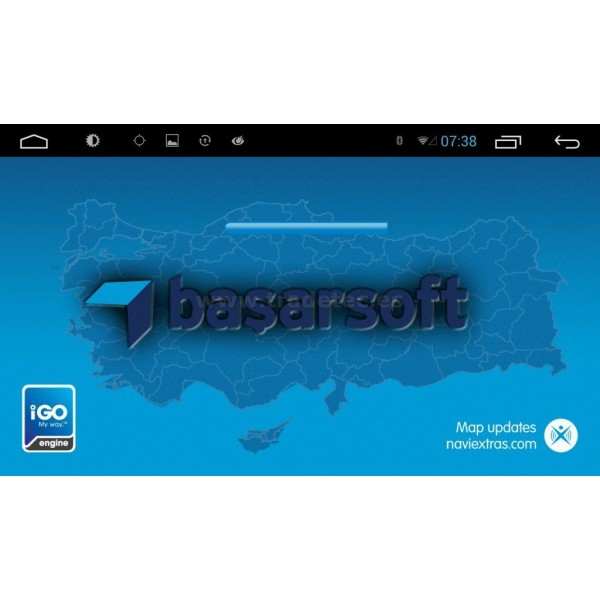

Supports Google map, Sygic, IGO, Papago, 3D maps, etc.

Navigation Software Storage: support SD / MMC / SDHC (up to 32GB SDHC 4GB ~.)

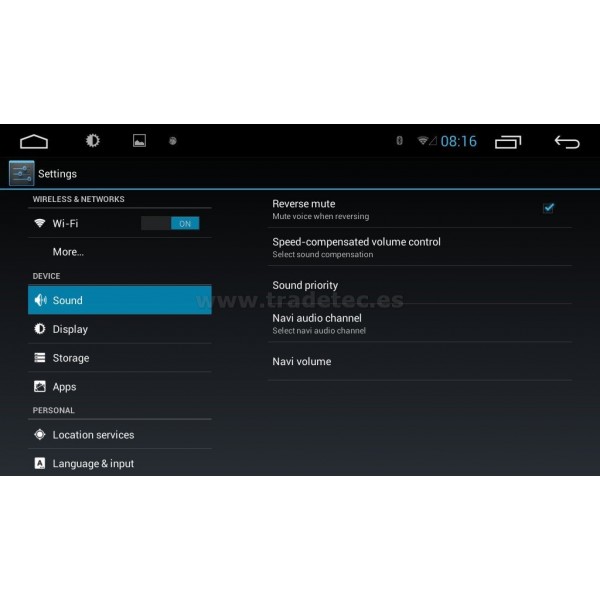

New features support for Bluetooth / iPod / USB / SD radio or navigation disc during playback. The sound of the radio / disc / iPod / USB / SD will drop or mute during voice navigation and return to normal following the prompts.


Screen:

Size of the screen 6,8"

capacitive multi touch screen

Screen resolution 1024 x 600 Pix. digital.

Customizable wallpaper.

Possibility to change the icons.

3D interface


Language:

Main interface more than 20 languages, including Spanish and Portuguese.

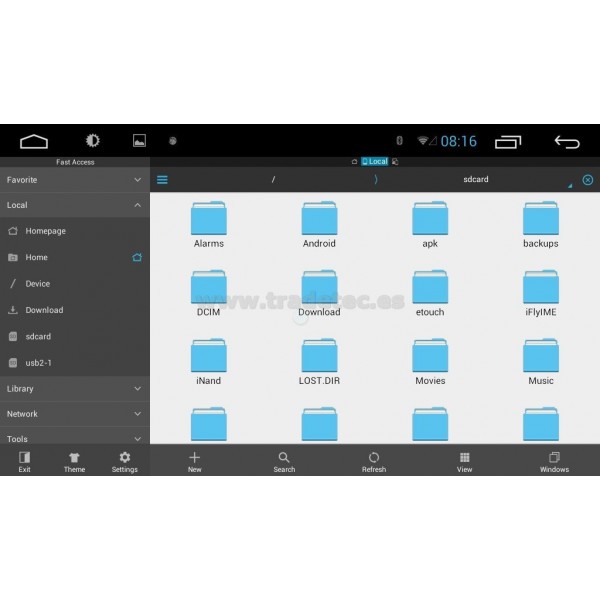

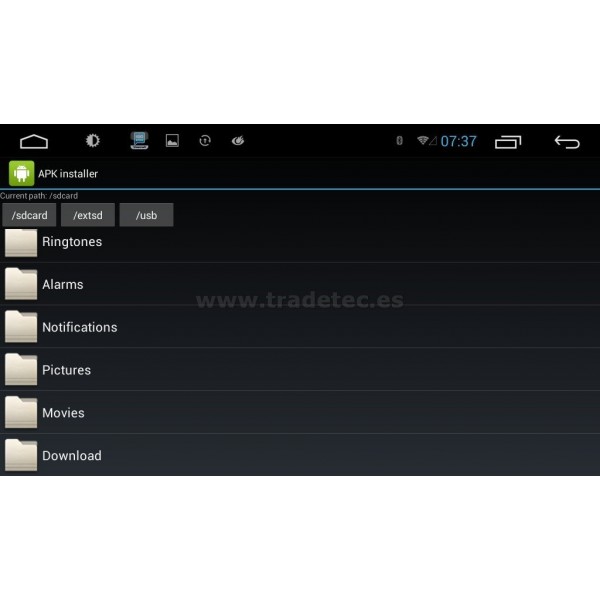

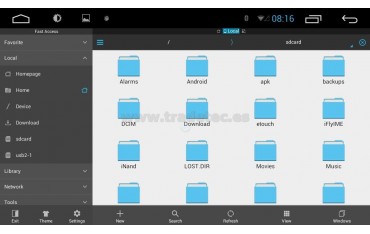

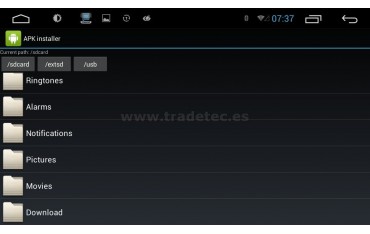

File management:

Supports copy and move files between different storage media and profiles

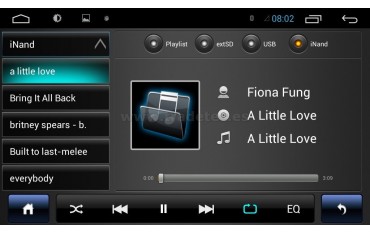

Video / Audio:

Video Support MP3 / WMA / WAV / APE / FLAC / ACC / OGG / AC3, etc format ...

Audio RMVB / AVI / MPG / MPEG / WMA / VOB / MOV / ASF / FLV / 3GP / MP4 format support, etc ...

BT.656 video input

RGB digital video output

Audio output RCA (also separate subwoofer output)

RCA audio input

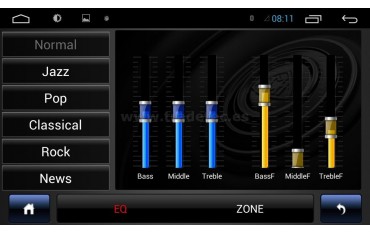

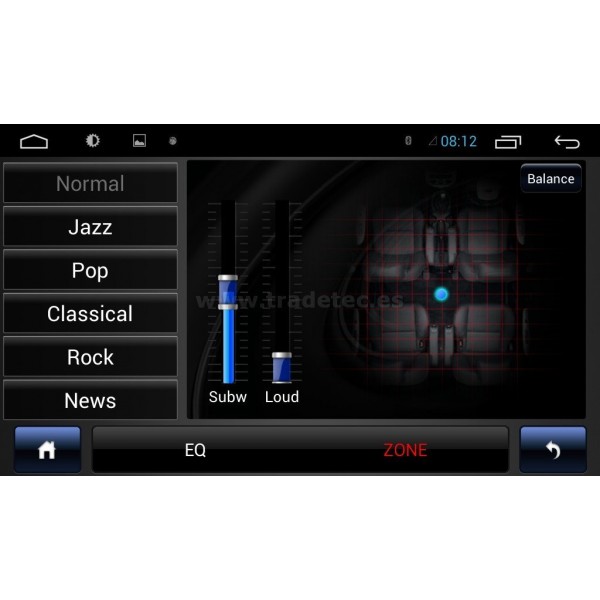

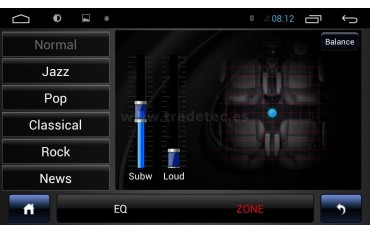

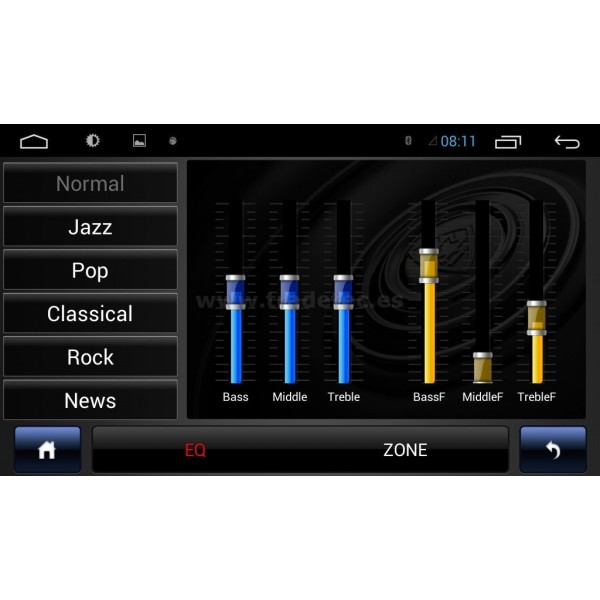

Customizable EQ, pop, jazz, dance, classical, rock, normal, custom mode, treble / fade / bass / balance, volume

Max Audio Output 50W x 4 Excellent sound effect

Signal to noise ratio> 80dB

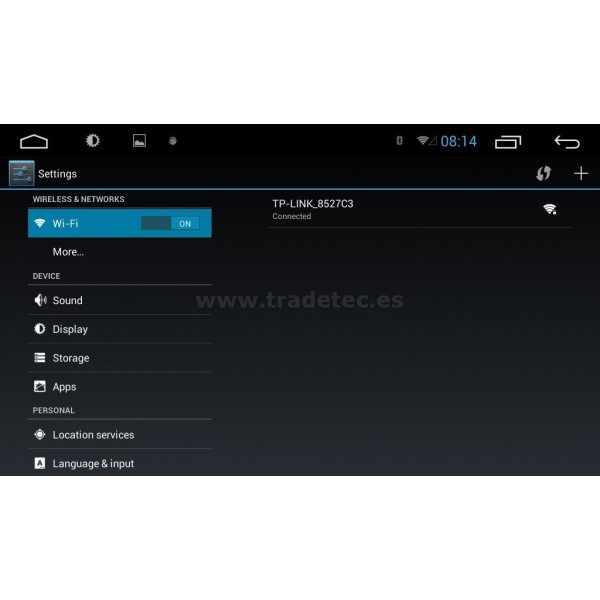

Internet:

4G LTE or via phone as a WiFi access point

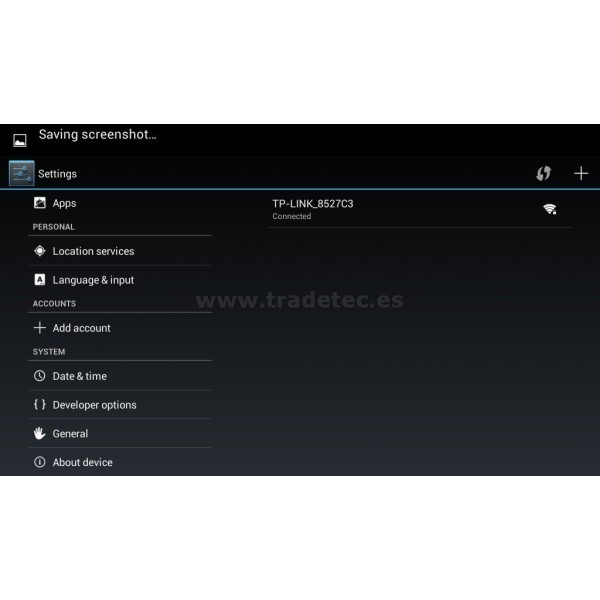

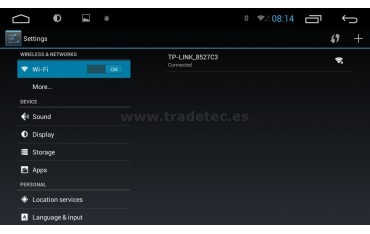

WIFI included

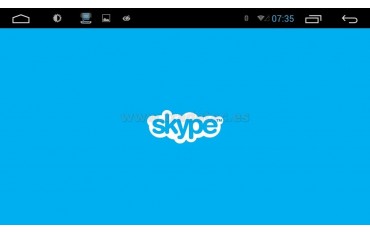

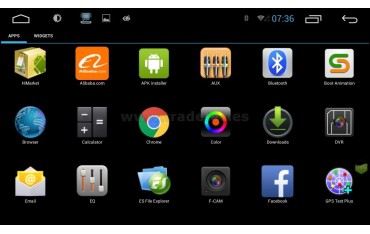

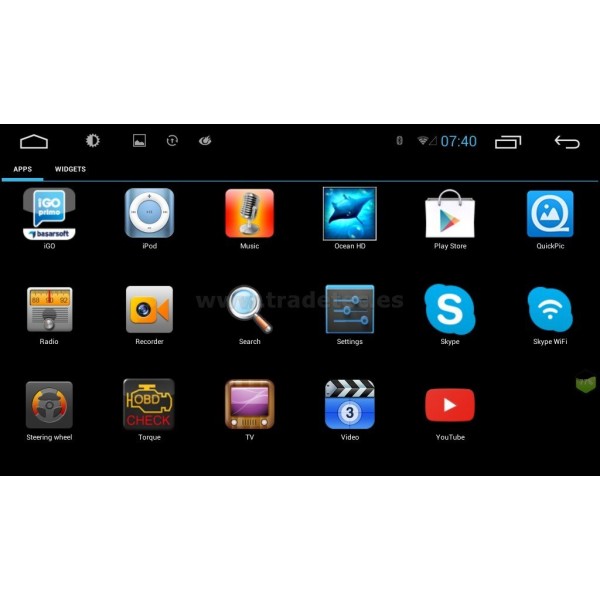

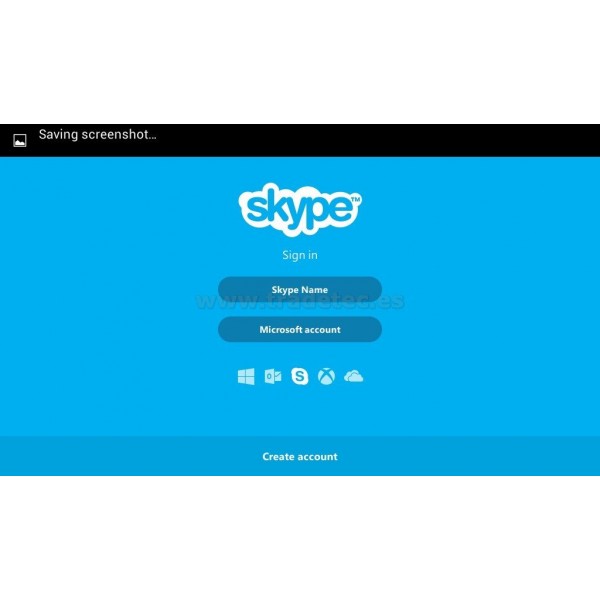

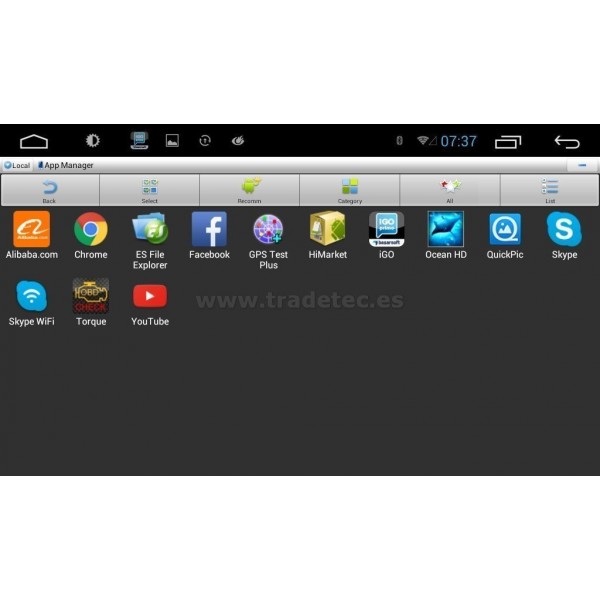

Compatible with Android applications. Google play included.



TV:

Digital TV DVB-T (MPEG4), ATSC, ISDB-T optional.

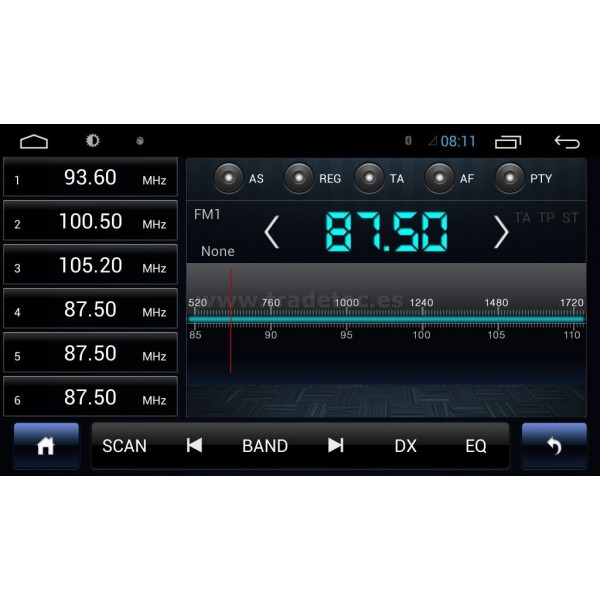

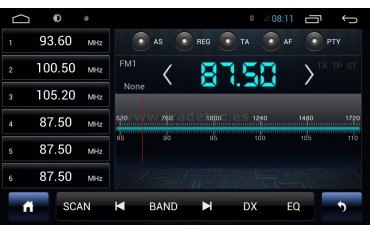

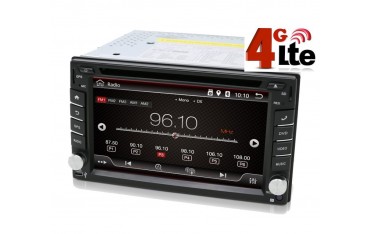

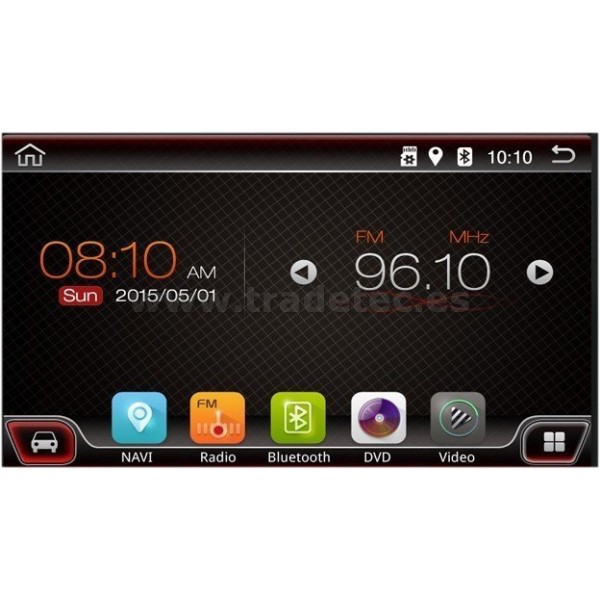

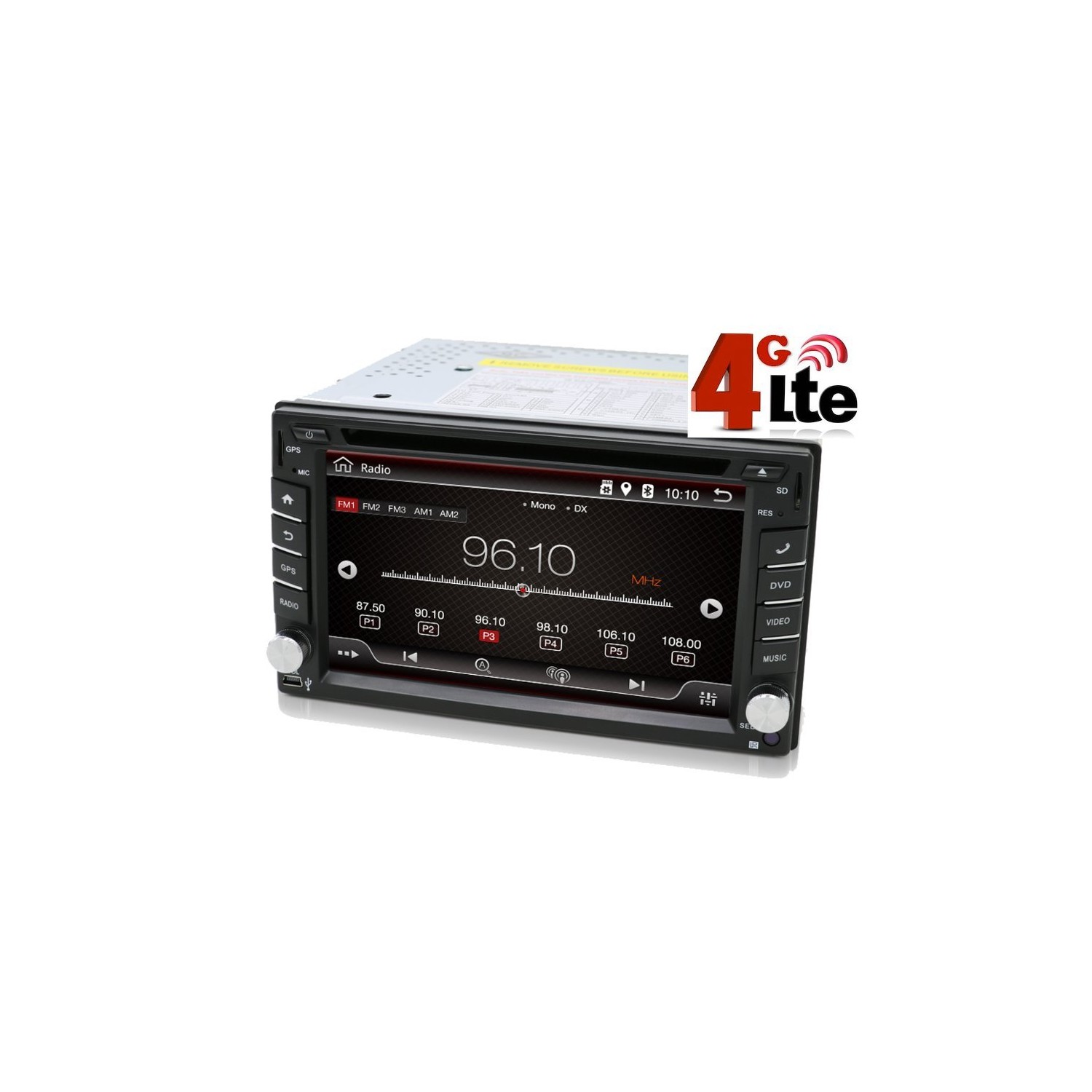

Radio:

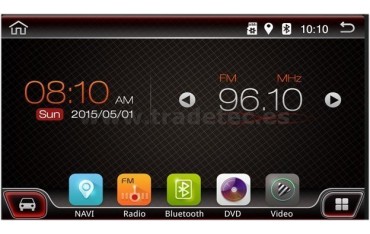

FM / AM radio with RDS

Frequency range of 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia), 12 preset stations

FM Tuning range 87.5 to 108 (Europe), 87.5 to 107.9 (America), 0.0 65.0-108 (Russia)

RDS Yes

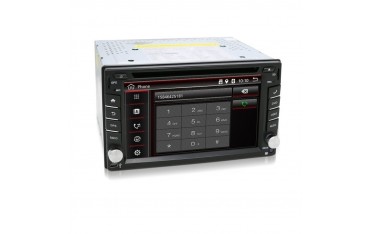

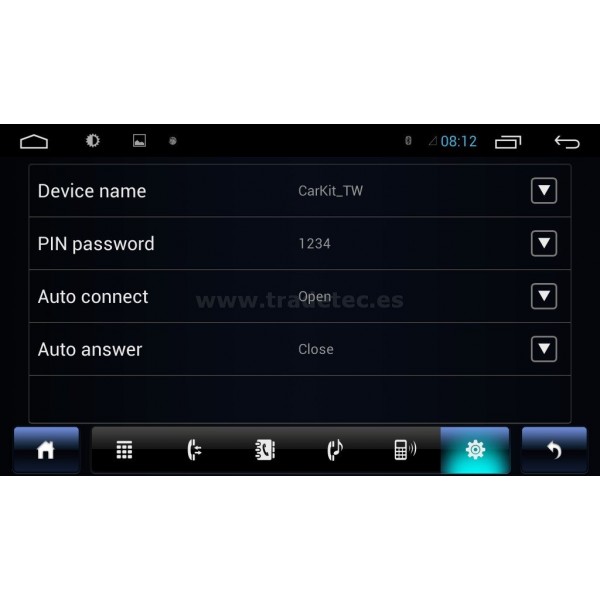

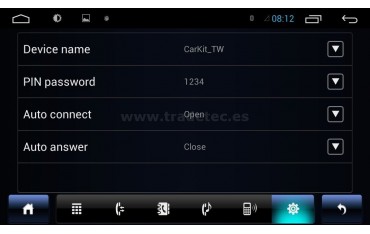

Bluetooth:

Compatible with formats HFP, A2DP, AVRCP

Main functions Handsfree, Dial (redial), response, calendar, phone music playback, volume control, touch pad, mute function ...

Search address book name Search Support A-Z


Storage:

SD Card and USB / SD Port (MAX 32GB or <1,500 files)

USB Port x 2

USB1.0 / USB2.0, Support Samsung, Blackberry, HTC, Motorola read through USB "

MicroSD slot x 1



Additional Features:

Rear parking camera and front camera compatible.

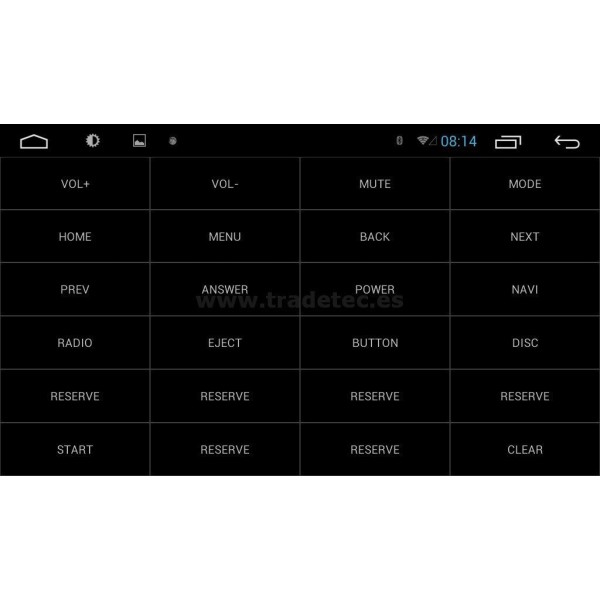

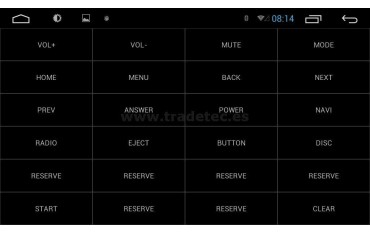

Steering wheel control 20 configurable keys.

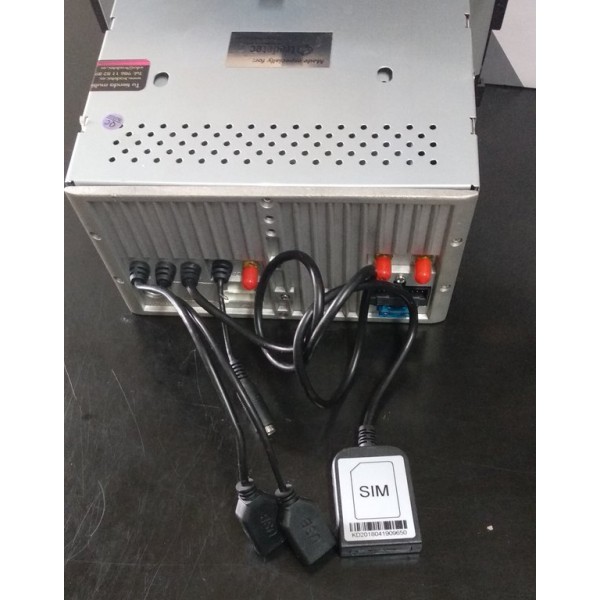

Connection:

WIFI

4G LTE

Bluetooth

USB Port

MicroSD input

digital TV input (optional)

Audio RCA * 2 (front L and R)

RCA audio output * 2 (rear L and R)

L AUX-input

AUX-R input

subwoofer output

Video Input

Video Output x 2

Rear camera (auto connection with the reverse gear)

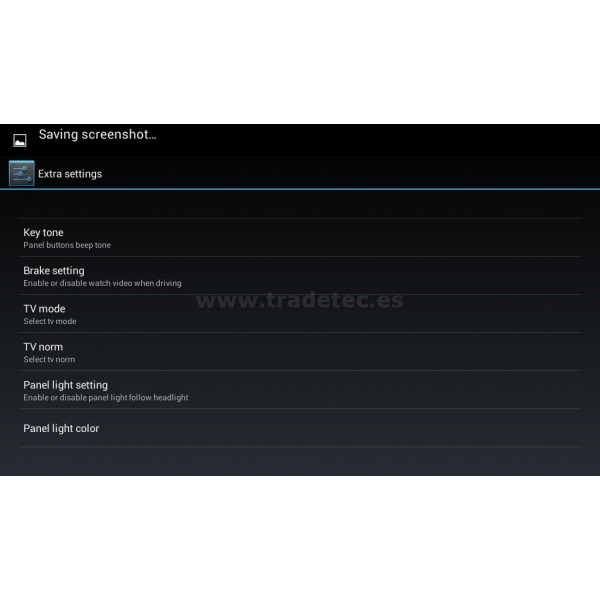

The button illumination is connected to turn on the lights of the vehicle itself. (Customizable color RGB)


Package content:

GPS antenna

Fasteners and metal screws

USB Cable

User's manual

Power cord

Digital TV antenna (optional)
