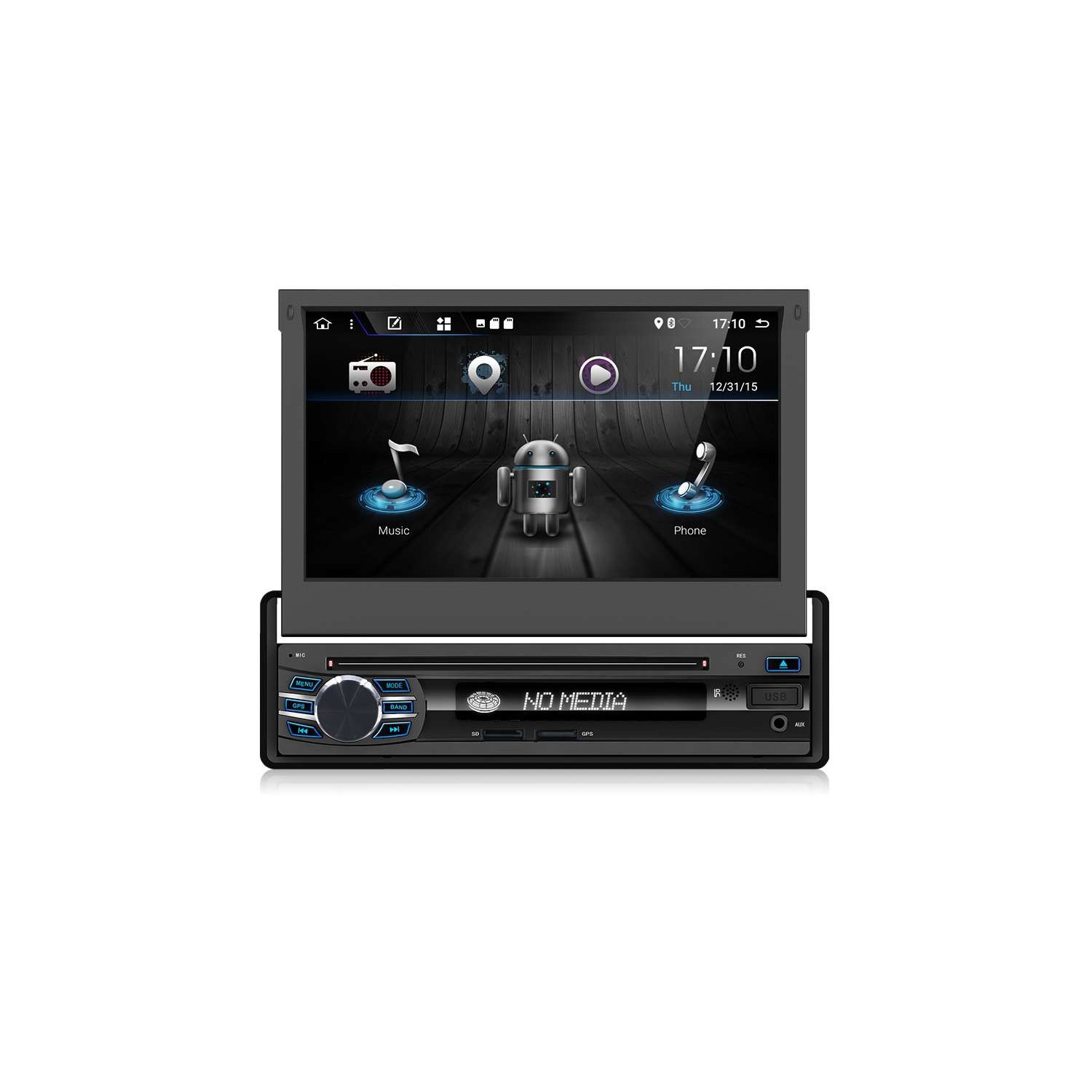

Android Radio 1 DIN multi touch screen REF: TR3142

Radio 1 DIN with 7 inch screen. REF: TR3142

Main features:

Android 7.1 system

Processor: Quad Core. 4 processing cores for a good user experience!

RAM: 2Gb DDR3

Mirror Link function to view and listen to your smartphone wirelessly on the display unit (Android and IOS)

Internal Memory: 32GB iNAND

OBD2 bluetooth

3G connection (optional) / WIFI for Internet browsing (Included)

Compatible with thousands of programs available on Android Market

Compatible 720P and 1080P

Bluetooth is compatible with all mobile phone brands, calendar feature, music playback, supports name search A-Z ...

GPU integrated with speeding its powerful hardware, helps to improve 2D / 3D GPS navigation, supports OpenGL 2.0 and OpenVG 1.1, decodes 1080P

Touch screen digital direct drive RGB888, a definition and a clearer screen than other models.

Multi touch screen control Touch

Support multi-resolution UXGA @ 60HZ1600 * 1200 maximum, it supports larger, even above 10.1 inch car DVD screens. Clearer images that resolution 800 * 480.

It supports video: .wmv (VC1 codec), AVI (H.264, MPEG4, MJPEG, XviD, WMV), MP4 (H.263, H.264, MPEG4), MPG (MPEG-2 codec), ... m4v (H.264, MPEG4)


Main system:

Main CPU. Cortex Quad Core 1.2GHz.

2Gb DDR3 RAM

32GB Flash Memory Type INAND

Decode Video 1080P

Android 7.1 operating system

Operating temperature -20 ° C to +70 ° C

Storage temperature -30 ° C to +80 ° C

Consumption 500 mA@4.2V

Input voltage 11.5 ~ 15.5 V

Off consumption <15 mA


Screen:

Size of the screen 7"

capacitive multi touch screen

Screen resolution 800 x 480 Pix. digital.

Customizable wallpaper.

Possibility to change the icons.

3D interface


Language:

Main interface more than 20 languages, including Spanish and Portuguese.


File management:

Supports copy and move files between different storage media and profiles


Video / Audio:

Video Support MP3 / WMA / WAV / APE / FLAC / ACC / OGG / AC3, etc format ...

Audio RMVB / AVI / MPG / MPEG / WMA / VOB / MOV / ASF / FLV / 3GP / MP4 format support, etc ...

BT.656 video input

RGB digital video output

Audio output RCA (also separate subwoofer output)

RCA audio input

Customizable EQ, pop, jazz, dance, classical, rock, normal, custom mode, treble / fade / bass / balance, volume

Max Audio Output 50W x 4 Excellent sound effect

Signal to noise ratio> 80dB



Internet:

WCDMA 3G dongle or via phone as a WiFi access point (USB 3G optional)

WIFI included

Compatible with Android applications. Google play included.

TV:

Digital TV DVB-T (MPEG4), ATSC, ISDB-T optional.


Radio:

FM / AM radio with RDS

Frequency range of 522-1620 (Europe), 530-1710 (America), 522-1620 (Russia), 12 preset stations

FM Tuning range 87.5 to 108 (Europe), 87.5 to 107.9 (America), 0.0 65.0-108 (Russia)

RDS Yes


Bluetooth:

Compatible with formats HFP, A2DP, AVRCP

Main functions Handsfree, Dial (redial), response, calendar, phone music playback, volume control, touch pad, mute function ...

Search address book name Search Support A-Z


Storage:

SD Card and USB / SD Port

USB Port

USB1.0 / USB2.0, Support Samsung, Blackberry, HTC, Motorola read through USB "

SD slot

Main features video Ipod, Iphone / ipad audio / load

Show list of songs, artist, album, Genres, Composers


Additional Features:

Rear parking camera and front camera compatible.

Steering wheel control 20 configurable keys.



Connection:

WIFI

Bluetooth

USB Port

SD input

digital TV input (optional)

Audio RCA * 2 (front L and R)

RCA audio output * 2 (rear L and R)

L AUX-input

AUX-R input

subwoofer output

Video Input

Video Output x 2

Rear camera (auto connection with the reverse gear)

The button illumination is connected to turn on the lights of the vehicle itself. (Customizable color RGB)


Package content:

Fasteners and metal screws

USB Cable

User's manual

Power cord

Digital TV antenna (optional)
