Module to add Android 11 on the original screen of Audi A4 / A5 / Q5 / S5 / RS5.
Compatible with the following cars:
Audi Q5 with original 10.1-inch screen resolution 1540*720 pixels touch (MIB3 from year 2020)
Audi A5 / S5 / RS5 with original 10.1-inch screen resolution 1540*720 pixels touch (MIB3 from year 2020)
Audi A4 / A4 Allroad / RS4 / S4 with original 10.1-inch screen resolution 1540*720 pixels touch (MIB3 from year 2020)
Connect the LVDS cable from the original car CD drive to the Android module with the LVDS adapter cable supplied in the kit. Insert the LVDS cable of the Android module into the LVDS connector of the CD drive that we just disconnected. (Android module "output" is connected to the original car CD)
This module allows you to add an independent Android system to the original Audi MIB3 system. Both systems work simultaneously and you can switch between them quickly. NO original car function is lost.
This module allows viewing of videos, it has video input, compatible with most applications such as YouTube, Google Maps, Waze, TomTom, Zlink and countless applications available in PlayStore to download.
1. It has a Wi-Fi connection (you can access the Internet by sharing a connection with a smartphone) as well as 4G (SIM card reader) and Bluetooth (with hands-free function)
2. It is controlled from the original touch screen, NOT with the MMI buttons
3. Connect to audio via original bluetooth
4. Includes WIRELESS CarPlay and WIRELESS Android Auto (also compatible via USB cable)
1, Android Multimedia Video Interface First Company (Android 11 system for original car screen upgrade)
2, Support original bluetooth and android module bluetooth
3, USB connections, 2 ports
4, Work with original car touch screen
5, MicroSD card slot
1. Android 11 (stable) OS with MTK 8core, 4xa73 2.0GHz + 4xa53 2.0 CPU 2.6G DDR
2. DDR3 8GB RAM, 64GB ROM / 8GB RAM, 128GB ROM
3. 2 USB ports, 1 MicroSD port (Support SD Max 128GB, Support USB Max 128GB)
4. Built-in high sensitivity GPS receiver
5. Built-in WiFi and 4G SIM card reader for Internet access
6. Support most video formats like 1080p H264 MP4 Avi RMVB FLV MKV
7. Compatible with most audio formats such as MP3 WMA FLAC ape AAC
8. Support phonelink function to mirror phone screen to car screen with Airplay (iPhone), Miracast (Android)
9. Support DVR (Driving Recording Camera) function with USB 2.0 and AV/CVB ports
10.Built-in RCA video input for rear parking camera
11. Compatible with or without original optical fiber
12. Compatible with or without original navigation
13. Built-in Bluetooth and compatible with original Bluetooth
14. Support original rear camera and parking sensors, show the same trajectory or radar as original
15.GPS sound from left front speaker when using original radio
16. Support AUX connection automatically
17. The installation is plug&play, keep the original screen of the car, support the original touch screen to control Android and the original interface
18. Android system can be connected to the original screen to continue to use Carplay, Yilian, etc...
19. The Android system is controlled through the touch panel, you do not need to modify anything from the original in the car and the original system is still operational with ALL the functions of the series
20. Support dual system: Audi original and Android with Playstore. Change of systems through very simple and agile pressing.
1. System: Android 11.0
2. Memory: 8GB RAM + 64GB ROM / 8GB RAM + 128GB ROM
3. Support 1920x720 / 1280x720 or other resolution
4. Support most mainstream video, image and music formats
6. Support external Carplay / Carlife / Android Auto / ZLINK
7. Compatible with original touch screen
8. Compatible with original reversing cameras front or rear trajectory. You can install non-original rear and/or front camera
9. Support original car reversing trajectory, parking sensors, 360º cameras, etc...
10. Support original car camera or can install non-original cameras
11. Support reverse camera image
12. Support wifi, bluetooth and 4G LTE connections (SIM card reader)
13. Support 4G network, you need to insert a SIM card
14. Supports audio, video, etc...
15. More than 40 languages available, including Spanish, English, Russian, French, German, Italian, Arabic, Portuguese, Turkish, Thai, etc.
16. Includes a mini speaker, it is only for Android interface sound when used simultaneously with the original equipment sounding.

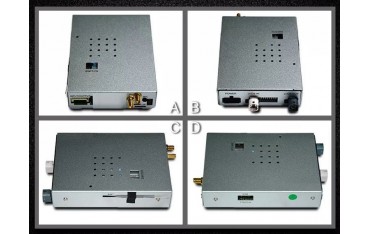

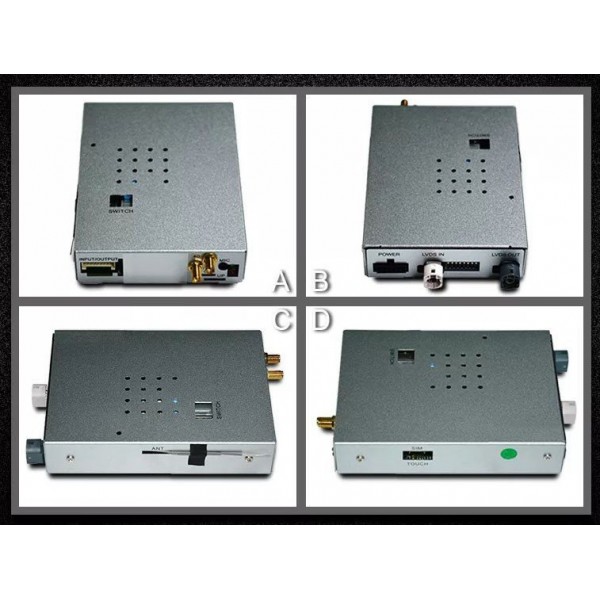

1 Android video interface module
1 power cord
1 indoor 4G SIM antenna
1 external microphone
1 mini speaker
1 GPS cable.
1 USB extension cable with 2 USB ports
