Digital instrument cluster for Jeep Cherokee 2014-2018
The TR5006 digital speedometer is a 12.3 inches instrument cluster designed for Jeep Cherokee 2014-2018. It replaces the driver-facing instrument display and brings together speed, engine RPM and the vehicle information available for this configuration. It is not an Android head unit or a centre-console multimedia screen.
Compatibility: vehicles and model years
Check compatibility against the factory cluster, connectors, model year and steering position. The factory-cluster photographs help identify the correct configuration; registration year alone does not identify every trim.
Functions and vehicle information display
- Digital speed and engine RPM display.
- Fuel, mileage and vehicle data display according to factory equipment.
- Vehicle information and warning lights on the display.
- Selectable display layouts to personalise the instrument panel.
- CarPlay and Android Auto included in the digital instrument cluster.
- CarPlay sound is played through the built-in cluster speaker, not the vehicle speakers.
Warnings, temperature, consumption, range and other information are displayed when the relevant sensors and vehicle messages are present. The cluster does not add sensors or new driver-assistance systems to a vehicle that does not have them.
CarPlay and Android Auto on the instrument display
This configuration includes CarPlay and Android Auto on the digital cluster. It displays the supported phone interface and applications, including phone-based navigation, on the instrument screen. A compatible phone and pairing are required. This does not mean Android applications are installed directly on the cluster, and it does not replace the centre display.
Audio: the supplied configuration plays CarPlay sound through the integrated cluster speaker.
Technical specifications
| TradeTec reference | TR5006 |
| Compatible vehicles | Cherokee 2014-2018 |
| Product type | Digital speedometer and instrument cluster |
| Display | 12.3 inches |
| CarPlay / Android Auto | Included |
| Interface | Selectable display designs and colours |
| Power supply | 12 V DC; input range 9-16 V |
| Operating current | Up to 2 A |
| Standby current | Up to 1 mA |
| Resolution | 1920 × 720 pixels |
| Specified brightness | 850 cd/m² |
| Wi-Fi | Dual-band 2.4 and 5 GHz; IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Receiver 4.2 + LE / BR/EDR; transmitter 5.2 |
| Operating temperature | -30 to 85 °C |
| Storage temperature | -40 to 90 °C |
| Specified protection | IP52; installation inside the cabin |
| Factory circuit board | Factory board retention is not required for the supplied configuration |
| Specified startup | Approximately 2 seconds |
Installation and factory-cluster requirements
The supplied configuration does not require retention of the original circuit board according to its specification. Professional installation, connector checks and configuration before final trim assembly are recommended.
Checks before and after installation
- Compare the factory-cluster photographs, housing and connectors.
- Select the correct configuration and check the equipment restrictions above.
- Check speed, RPM, fuel, mileage and warning lights after installation.
- Retain the original components until the installation has been fully checked.
Product and compatible factory-cluster photographs

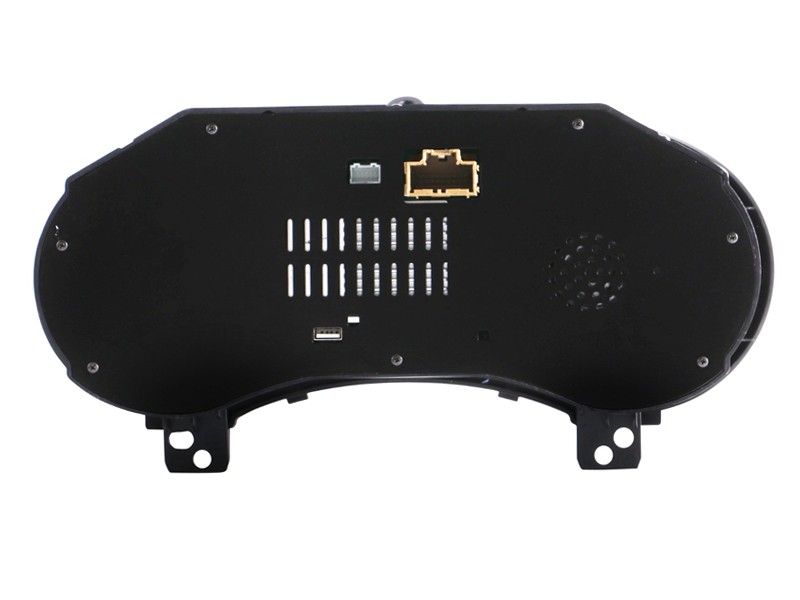

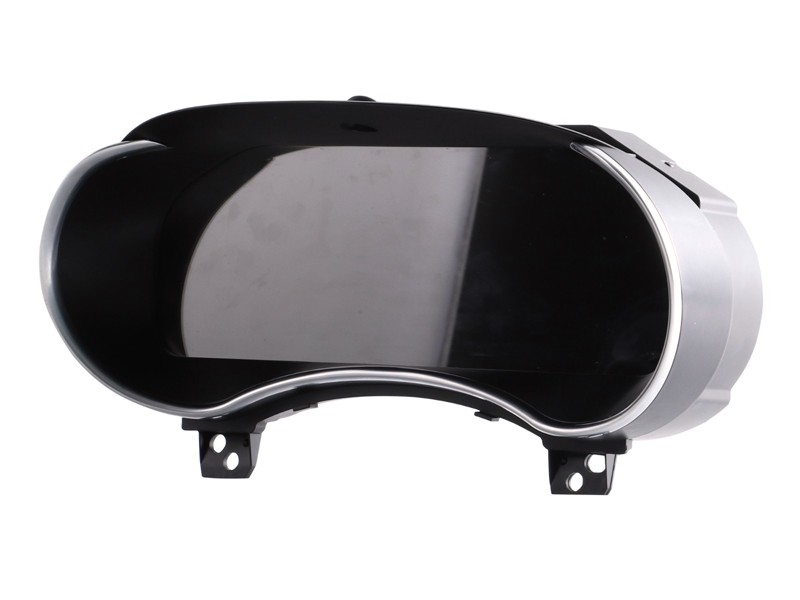

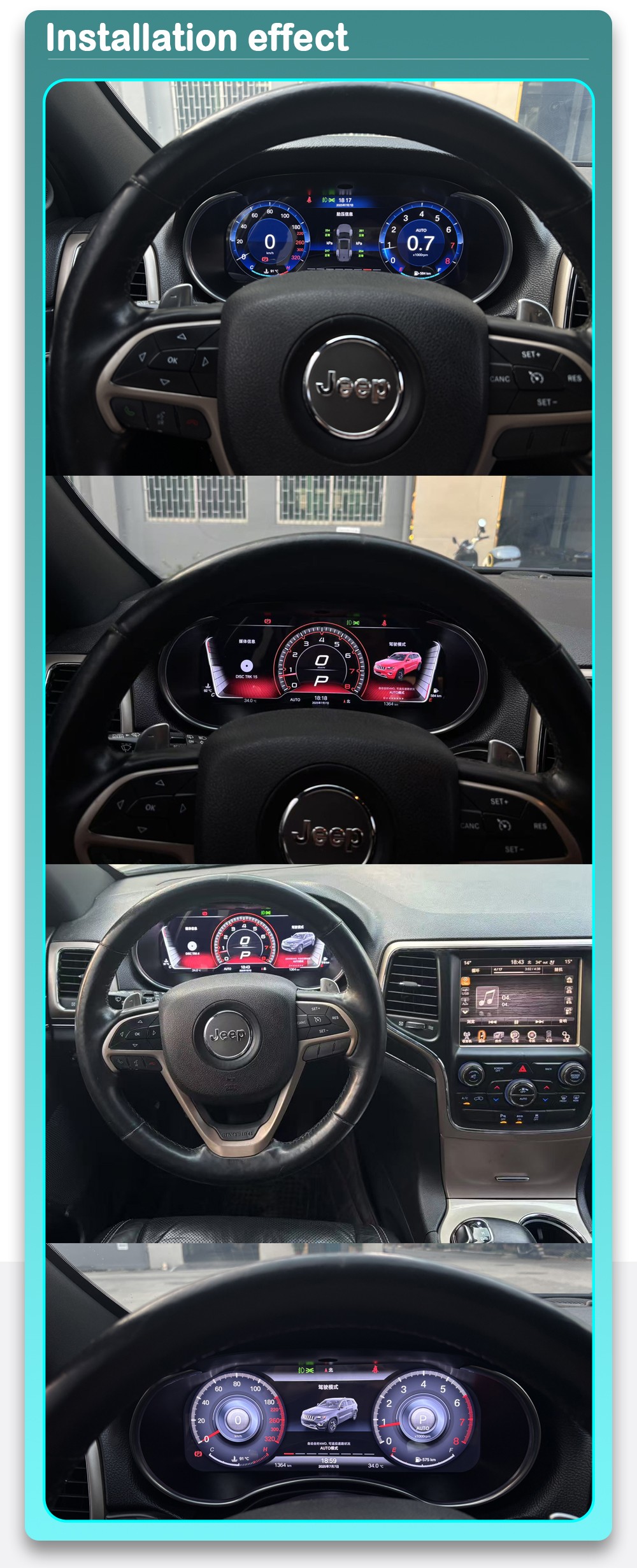

Digital cluster Jeep Cherokee 2014-2018
Digital cluster Jeep Cherokee 2014-2018
Digital cluster Jeep Cherokee 2014-2018
Digital cluster Jeep Cherokee 2014-2018
Digital cluster Jeep Cherokee 2014-2018
Digital cluster Jeep Cherokee 2014-2018

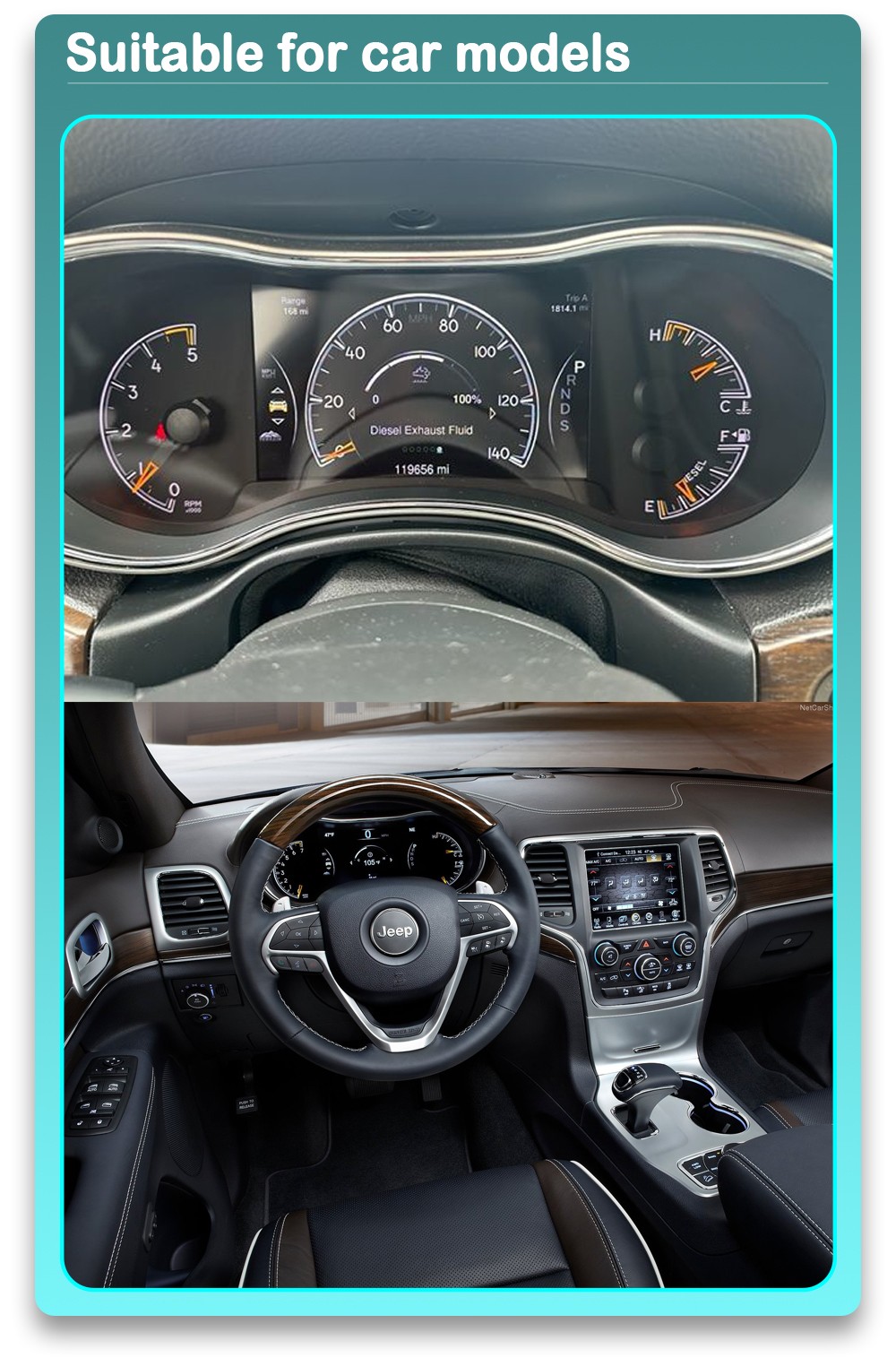

Factory-cluster reference: Jeep Cherokee 2014-2018
TR5006 frequently asked questions
Does it replace the radio or centre screen?
No. This is a digital instrument cluster for the driver-facing display area. The centre multimedia screen is a separate system.
How do I check the correct version?
Check the listed vehicles and years, factory-cluster photograph and the limitations in this listing. Send us an interior photograph and vehicle details to review the configuration before the order is prepared.
