Car diagnostics OBD2 module ✔ Compatible android car head unit!

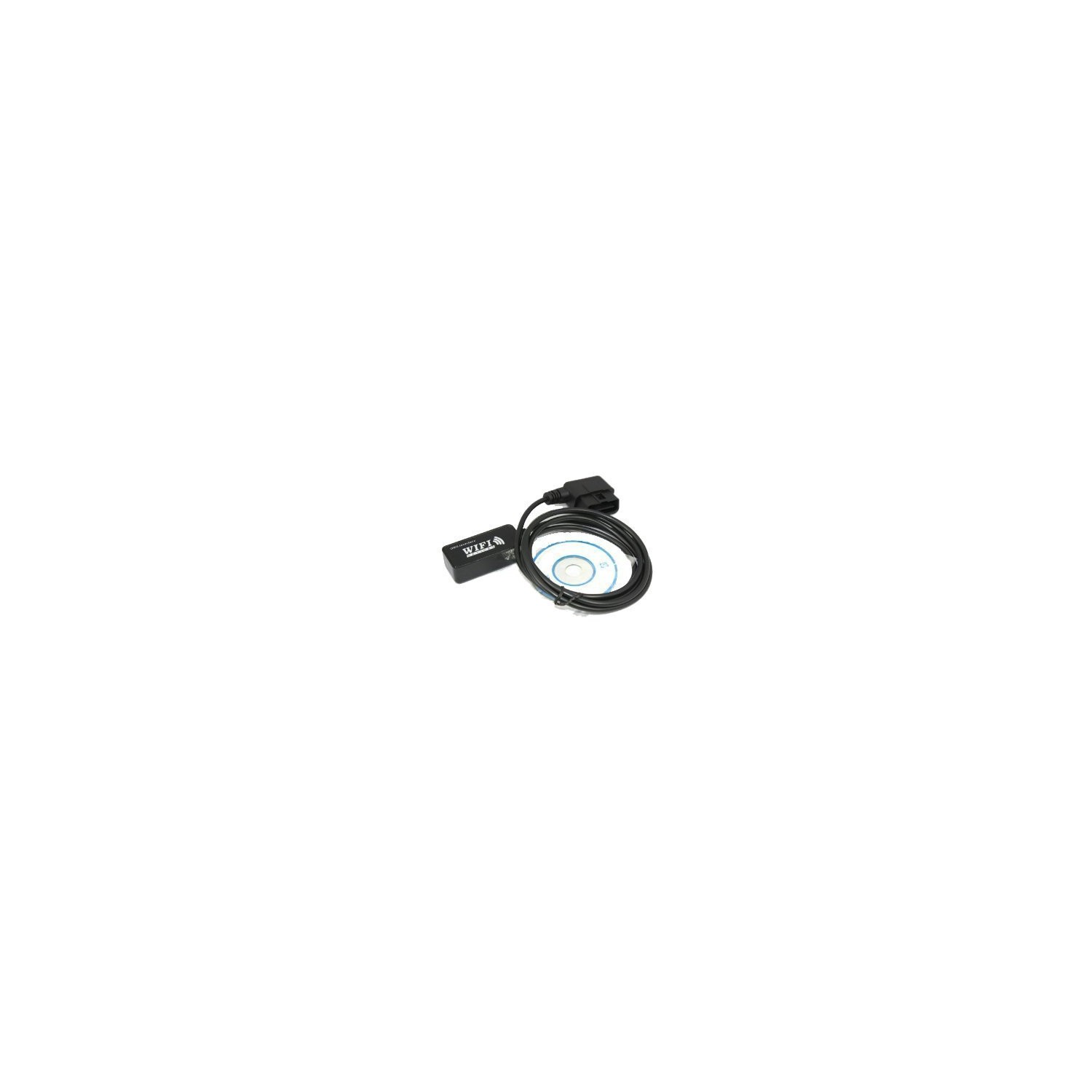

OBD2 module for Android car head units TR989
€49.58 tax incl.
Car diagnostics OBD2 module ✔ Compatible android car head unit!
OBD2 device to monitor car parameters
WiFi device, new wireless scanning tool for Android and Apple.
You can now see all the parameters of the on-board computer even if the car doesn't have this function.
This device connects to the car via the OBD2 port (compatible with most cars) and to any Android or mobile IOS model via Wifi.
Possibility of scanning and monitoring all vehicle parameters, including parameters that do not appear on the on-board computer.
Supports all OBD-II protocols
Wireless (standard WiFi uses 802.11a / b / g)
Features:
Read the manufacturer's diagnostic, generic and specific codes, show their meaning (over 3000 generic definitions of codes in the database) directly on your iPhone, iPad or Android device.
Clear the trouble codes and turn off the warning lights
Show current car data, including:
- Engine rpm
- Load values
- Coolant temperature
- Fuel System Status
- Vehicle speed
- Fuel adjustment
- Reduction of fuel quantity for long trips
- Admission pressure
- Advance regulation
- Intake air temperature
- Airflow
- Throttle position
- O2 sensor voltages
- The condition of the fuel intake system and turbo pressure
Diagnostic software not included.
Delete car failures at the best price
With this OBD (On Board Diagnostics) accessory, what can be done is to visualize the errors and failures of the vehicles without having to go to an official workshop of the brand.
Protocols supported:
ISO 11898 (aka. CAN)
ISO 15765-4 (CAN-B 125kbps, from 2003 in EE.UU.)
ISO 15765-4 (CAN-C 500Kbs, ID 11bit, 29bit ID, from 2003 in EE.UU.)
ISO 14230-4 (KWP2000)
ISO 9141-2 (5 baud init. 10,4 kbaudios, changed for 14230-4, stopped in EE.UU. in 2008)
SAE J1850 VPW (10,4 kbaud, changed for 14230-4, stopped in EE.UU. in 2008)
SAE J1850 PWM (41,6 kbaud, changed for 14230-4, stopped in EE.UU. in 2008)
SAE J1939 standard connection
Compatible cars:
Europe 1-2001 ~ Gasoline cars
Europe 2004.01 ~ Diesel cars
EE.UU. 1996.01 ~ Gasoline cars
EE.UU. 1996.01 ~ Small trucks
Japan 2006 ~ Toyota, Nissan, Suzuki
The diagnostic device works on all cars from 1996 onwards.
Video example of OBD2 diagnosis module with DashCommand software (Not included)
